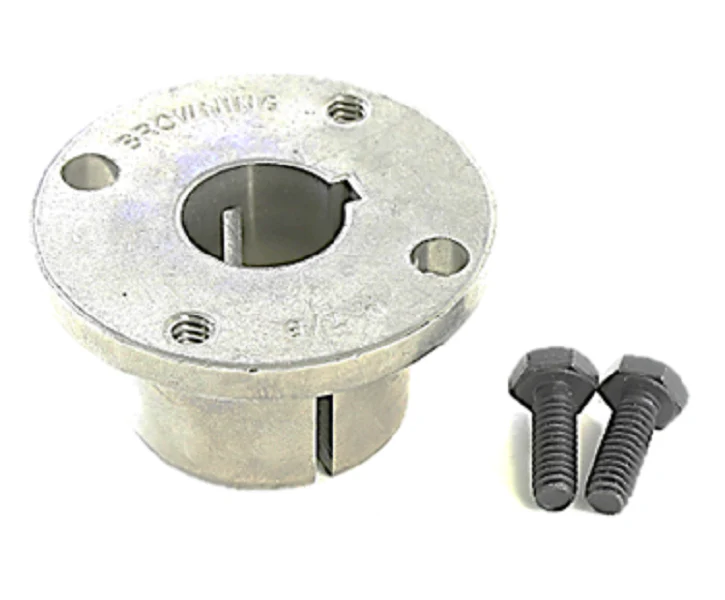

Browning H 7/8 Bushing
The Browning H 7/8 Bushing is a high-grade H series split taper bushing designed for critical power transmission in HVACR systems. Built for finished bore shafts, this component utilizes a 7/8 inch bore with a standard 3/16 x 3/32 keyseat to provide a secure, non-slip mechanical lock. Unlike standard bushings, the split taper design features a double-split barrel and a solid flange, ensuring superior concentricity and reducing shaft vibration in high-RPM fan and blower applications. With a 3/4 inch per foot taper, this bushing provides a self-locking fit that facilitates high torque transfer without the risk of seizing. The steel construction and 2-inch bolt circle make it compatible with a wide range of Browning sheaves, pulleys, and sprockets. Technicians value the H index bushing for its ease of installation and removal using standard cap screws, which significantly reduces downtime during routine drive-train maintenance.
Key Benefits- Double-Split Barrel: Provides a uniform grip around the full circumference of the shaft, preventing marring and ensuring true-running performance.
- Optimized Torque Transfer: The 3/4" per foot taper design offers a high degree of mechanical locking, essential for heavy-start HVAC centrifugal fans.
- Solid Flange Design: Enhances structural integrity and simplifies alignment during the mounting of sheaves or sprockets.
- Standardized Keyway: Features a precision-cut 3/16 x 3/32 keyseat for reliable power transmission under varying load conditions.
What is the recommended screw torque for the Browning H 7/8?
Standard installation requires a wrench torque of 95 in-lbs on the 1/4 x 3/4 cap screws to ensure the taper is properly seated without over-stressing the flange.
Can this bushing be used on a shaft without a keyway?
While the split taper design provides significant clamping force, it is engineered to work with a keyed shaft for peak safety and torque ratings in industrial HVACR applications.
Is the H series compatible with QD type sheaves?
No, the H series is a split taper style and is specifically designed for bushed bore components that accept the H-series bolt pattern; it is not interchangeable with QD (Quick Detachable) style bushings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $21.79
-65%$21.79
$7.63Browning H 7/8 Bushing
The Browning H 7/8 Bushing is a high-grade H series split taper bushing designed for critical power transmission in HVACR systems. Built for finished bore shafts, this component utilizes a 7/8 inch bore with a standard 3/16 x 3/32 keyseat to provide a secure, non-slip mechanical lock. Unlike standard bushings, the split taper design features a double-split barrel and a solid flange, ensuring superior concentricity and reducing shaft vibration in high-RPM fan and blower applications. With a 3/4 inch per foot taper, this bushing provides a self-locking fit that facilitates high torque transfer without the risk of seizing. The steel construction and 2-inch bolt circle make it compatible with a wide range of Browning sheaves, pulleys, and sprockets. Technicians value the H index bushing for its ease of installation and removal using standard cap screws, which significantly reduces downtime during routine drive-train maintenance.
Key Benefits- Double-Split Barrel: Provides a uniform grip around the full circumference of the shaft, preventing marring and ensuring true-running performance.
- Optimized Torque Transfer: The 3/4" per foot taper design offers a high degree of mechanical locking, essential for heavy-start HVAC centrifugal fans.
- Solid Flange Design: Enhances structural integrity and simplifies alignment during the mounting of sheaves or sprockets.
- Standardized Keyway: Features a precision-cut 3/16 x 3/32 keyseat for reliable power transmission under varying load conditions.
What is the recommended screw torque for the Browning H 7/8?
Standard installation requires a wrench torque of 95 in-lbs on the 1/4 x 3/4 cap screws to ensure the taper is properly seated without over-stressing the flange.
Can this bushing be used on a shaft without a keyway?
While the split taper design provides significant clamping force, it is engineered to work with a keyed shaft for peak safety and torque ratings in industrial HVACR applications.
Is the H series compatible with QD type sheaves?
No, the H series is a split taper style and is specifically designed for bushed bore components that accept the H-series bolt pattern; it is not interchangeable with QD (Quick Detachable) style bushings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
