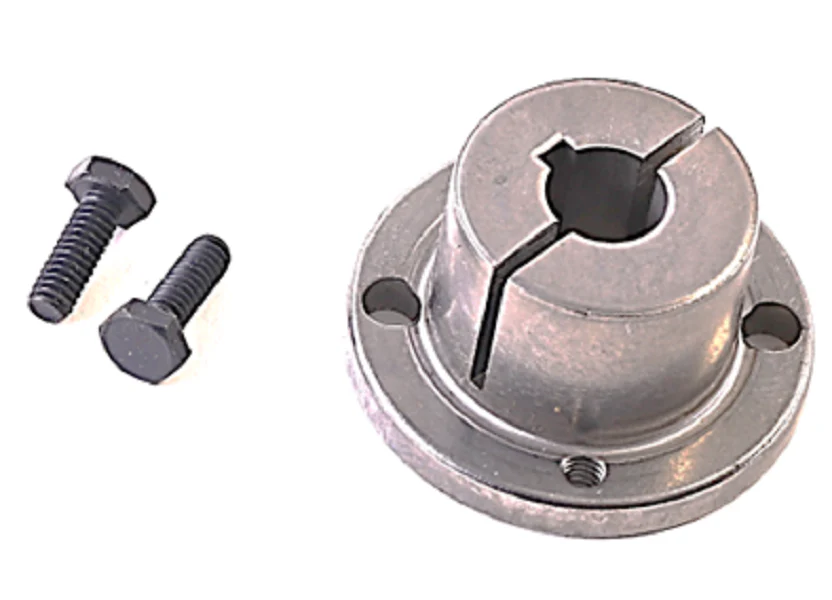

Browning H 5/8 Bushing
For your professional drive assembly needs, the Browning H 5/8 Bushing provides a precision-engineered solution for high-torque power transmission. This H series split taper bushing is manufactured with a 5/8" bore and integrated 3/16" x 3/32" keyseat, ensuring a positive drive that manages mechanical loads without exerting excess torque on the cap screws. The design incorporates a double-split barrel and solid flange, which work together to facilitate true concentricity and a robust clamp fit onto the shaft. These split taper bushings are essential for maintaining alignment in HVACR applications like fan drives, centrifugal pumps, and heavy-duty blowers.
The mechanical locking power of this component is derived from its 3/4-inch-per-foot taper, a standard that delivers superior gripping force compared to traditional straight-bore or set-screw alternatives. Built from high-grade sintered steel, it is optimized for stability and vibration resistance in industrial environments. Using an OEM Browning 5/8 inch shaft bushing ensures full compatibility with H-series sheaves, sprockets, and pulleys, allowing for quick field installation and simplified maintenance rotations. This component is the reliable choice for technicians requiring a secure shaft-to-hub connection that prevents slippage during high-inertia startups.
Key Benefits:- Enhanced Concentricity: The double-split barrel provides a uniform 360-degree grip, minimizing shaft runout and extending the life of your bearings.
- High Torque Capacity: Features an external key to the hub and an internal key to the shaft, moving the drive load away from the mounting bolts.
- Self-Locking Taper: The 3/4" per foot taper design provides a high degree of friction-based locking for maximum security.
- Versatile Application: Fully compatible with a wide range of Browning sheaves and mechanical drive components commonly found in commercial HVAC systems.
- What is the wrench torque specification for the H series bushing? For a standard installation, use a torque wrench to tighten the cap screws to approximately 95 in-lbs to ensure a proper seat without over-stressing the flange.
- Can this be used on a shaft without a keyway? While the bushing will clamp, using a shaft key is required to utilize the full torque rating and the positive drive characteristics provided by the 3/16" x 3/32" keyseat.
- Is this bushing interchangeable with QD style bushings? No, the split taper bushing design has a different taper angle and bolt pattern than QD (Quick Disconnect) bushings; always verify the hub style of your sheave before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $21.79
-65%$21.79
$7.63Browning H 5/8 Bushing
For your professional drive assembly needs, the Browning H 5/8 Bushing provides a precision-engineered solution for high-torque power transmission. This H series split taper bushing is manufactured with a 5/8" bore and integrated 3/16" x 3/32" keyseat, ensuring a positive drive that manages mechanical loads without exerting excess torque on the cap screws. The design incorporates a double-split barrel and solid flange, which work together to facilitate true concentricity and a robust clamp fit onto the shaft. These split taper bushings are essential for maintaining alignment in HVACR applications like fan drives, centrifugal pumps, and heavy-duty blowers.
The mechanical locking power of this component is derived from its 3/4-inch-per-foot taper, a standard that delivers superior gripping force compared to traditional straight-bore or set-screw alternatives. Built from high-grade sintered steel, it is optimized for stability and vibration resistance in industrial environments. Using an OEM Browning 5/8 inch shaft bushing ensures full compatibility with H-series sheaves, sprockets, and pulleys, allowing for quick field installation and simplified maintenance rotations. This component is the reliable choice for technicians requiring a secure shaft-to-hub connection that prevents slippage during high-inertia startups.
Key Benefits:- Enhanced Concentricity: The double-split barrel provides a uniform 360-degree grip, minimizing shaft runout and extending the life of your bearings.
- High Torque Capacity: Features an external key to the hub and an internal key to the shaft, moving the drive load away from the mounting bolts.
- Self-Locking Taper: The 3/4" per foot taper design provides a high degree of friction-based locking for maximum security.
- Versatile Application: Fully compatible with a wide range of Browning sheaves and mechanical drive components commonly found in commercial HVAC systems.
- What is the wrench torque specification for the H series bushing? For a standard installation, use a torque wrench to tighten the cap screws to approximately 95 in-lbs to ensure a proper seat without over-stressing the flange.
- Can this be used on a shaft without a keyway? While the bushing will clamp, using a shaft key is required to utilize the full torque rating and the positive drive characteristics provided by the 3/16" x 3/32" keyseat.
- Is this bushing interchangeable with QD style bushings? No, the split taper bushing design has a different taper angle and bolt pattern than QD (Quick Disconnect) bushings; always verify the hub style of your sheave before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
