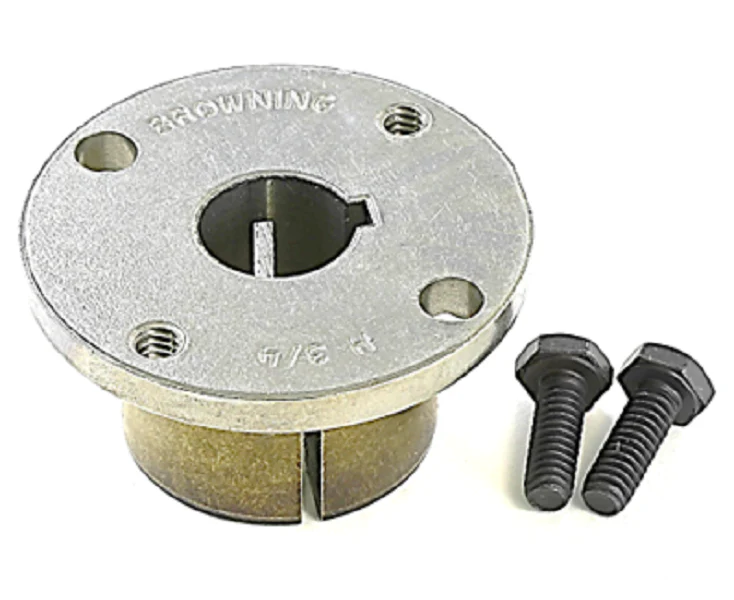

Browning H 3/4 Bushing
For your next mechanical drive installation, the Browning H 3/4 Bushing provides the reliable, high-torque industrial performance required in HVACR and power transmission systems. This H series split taper bushing is engineered with a 3/4 inch bore and a standard 3/16 x 3/32 keyseat, ensuring a precision fit on compatible shafts. The design features a double split barrel that expands and contracts for a secure, 360-degree clamp fit, effectively eliminating the common issue of shaft marring. With a 3/4" per foot taper and a solid flange, this component maintains superior concentricity even under high vibration. Constructed from sintered steel or ductile iron, it provides an external key for positive drive, transferring torque load away from the cap screws to the hub and shaft. Technicians rely on the Browning split taper design for its ease of installation via two 1/4 x 3/4 cap screws, capable of handling a wrench torque of 95 in-lbs.
Key Benefits:
- High Torque Capacity: The external key ensures positive drive, removing stress from mounting hardware during operation.
- Precision Alignment: Double split barrel and solid flange design provide improved concentricity to reduce mechanical wear.
- Secure Shaft Gripping: Provides a positive clamp fit that handles heavy-duty loads without slipping.
- Interchangeability: Standardized H-series dimensions make it a drop-in replacement for any 3/4 bore split taper bushing.
- Simplified Maintenance: Split design allows for rapid removal and repositioning on the shaft.
Common Questions:
What is the maximum torque for the Browning H 3/4 cap screws?
The recommended wrench torque for the 1/4" cap screws is 95 in-lbs to ensure a secure lock without damaging the assembly.
Does this bushing require a keyed shaft?
Yes, it is designed for a keyed shaft with a 3/16" x 3/32" keyseat to provide maximum mechanical locking and power transfer.
Can I use this with any H-series sheave or sprocket?
Yes, the H-series designation is a standard industrial sizing, allowing compatibility with any Browning or universal hub manufactured for H split taper bushings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
