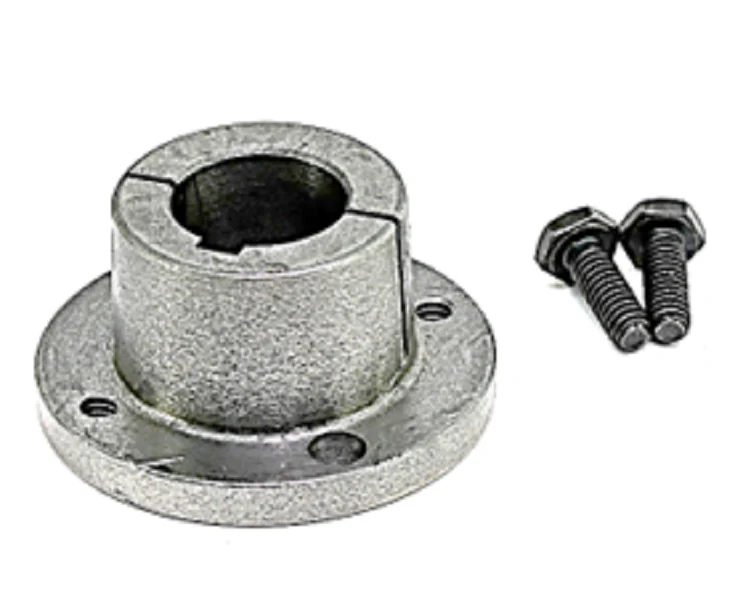

Browning H 15/16 Bushing
The Browning H 15/16 Bushing is a critical component for maintaining precise shaft-to-hub concentricity in HVACR and mechanical power transmission systems. Designed specifically as a Split Taper Bushing, this unit features a 15/16 inch bore and a standard 1/4" x 1/8" keyseat to ensure positive drive engagement. The Browning H-Series is engineered with a double-split barrel that provides a uniform 360-degree grip, significantly reducing the risk of shaft slippage and vibration common in high-torque fan and blower applications. Unlike standard bushings, this mechanical locking solution utilizes a 3/4" per foot taper to provide superior clamping force. With a 2.5" flange diameter and a 1.25" length through bore, it integrates seamlessly with FHP sheaves and pulleys. Constructed from high-grade sintered steel or ductile iron, it delivers a rated 95 lb-in cap screw torque for reliable industrial performance.
Key Benefits:
- Double-Split Barrel: Delivers superior concentricity, protecting your shafting from eccentric loads and premature bearing wear.
- Positive Drive: The 1/4" x 1/8" keyseat is keyed to both the shaft and the hub, ensuring torque is transmitted through the key rather than the hardware.
- Self-Locking Taper: The 3/4" per foot taper provides high mechanical advantage for a secure shaft-to-hub fit that is easy to install and remove.
- Industrial Durability: Solid flange construction manufactured from heavy-duty steel to withstand the rigors of HVAC power transmission.
Common Questions:
Does this bushing require specific hardware for installation?
Yes, the Browning H 15/16 utilizes two 1/4" x 3/4" cap screws. Proper torque to 95 lb-in is essential to prevent backing out during operation.
Is this compatible with all Browning H-series sheaves?
This 15/16" split taper bushing is compatible with any sheave, sprocket, or pulley machined for an "H" series bushing profile.
What is the primary advantage of a split taper over a quick-disconnect (QD) bushing?
The split taper design features a more pronounced taper and a double-split barrel, which generally offers a more aggressive grip and better concentricity on smaller shaft diameters commonly found in HVAC fan motors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $28.18
-65%$28.18
$9.86Browning H 15/16 Bushing
