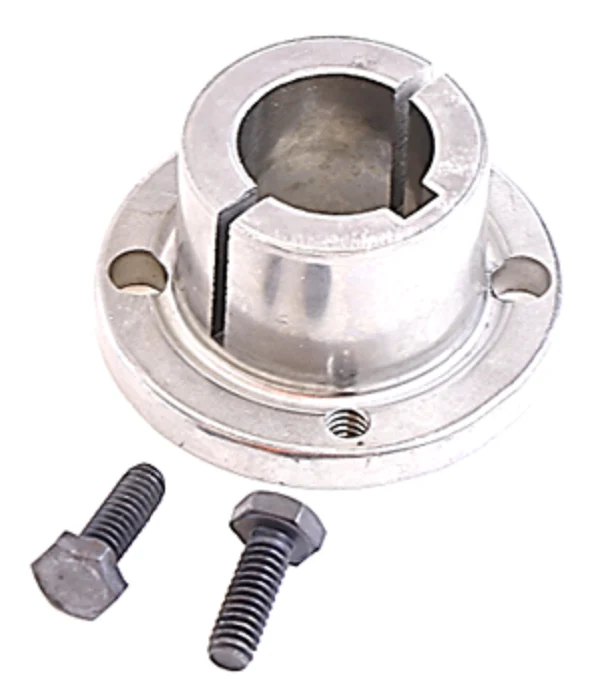

Browning H 1 CLEAR PK Bushing
The Browning H 1 CLEAR PK Bushing is a high-performance split taper bushing engineered for precise mechanical power transmission in HVACR and industrial drive systems. This H series split taper bushing features a standard 1 inch bore with a precision-machined 1/4" x 1/8" keyseat, ensuring a secure, non-slip attachment for sheaves, pulleys, and sprockets. Designed with a double-split barrel and a solid flange, it provides superior concentricity and a positive clamp fit that minimizes shaft vibration and runout. The 3/4" per foot taper offers a self-locking mechanism that delivers high torque-carrying capacity without placing undue stress on the cap screws. Whether you are performing a routine replacement or a new installation, the Browning H1CLEARPK offers the reliable shaft-to-hub locking required for demanding heavy-duty motor applications. Its sintered steel or ductile iron construction ensures long-term structural integrity in high-torque environments.
Key Benefits- True Concentricity: The double-split barrel design provides a uniform grip around the full circumference of the 1" shaft, reducing wear on bearings and drive components.
- High Torque Capacity: Engineered with a self-locking 3/4" taper to handle significant mechanical loads in industrial HVAC blowers and fans.
- Versatile Compatibility: Fits any H-series hub, making it a standard choice for cross-referencing with other major power transmission brands.
- Easy Installation/Removal: Includes two 1/4" x 3/4" cap screws for straightforward mounting and a specialized design that prevents freezing to the shaft during teardowns.
- Positive Drive: The 1/4" x 1/8" keyway ensures a keyed connection to both the shaft and the hub for maximum power transfer.
What is the difference between an H-series split taper and a QD bushing?
Unlike QD (Quick Disconnect) bushings which use a single split, the Browning split taper design utilizes a double-split barrel and a specific 3/4" per foot taper. This provides a more consistent "clamping" force and improved concentricity, which is critical for high-speed HVAC applications where balance is key.
What torque should be applied to the cap screws during installation?
For the Browning H series, the 1/4" cap screws should typically be tightened to approximately 95 lb-in. Always use a torque wrench to prevent over-tightening, which can lead to flange breakage or hub failure.
Can this bushing be used on a shaft without a keyway?
While the split taper design provides an incredibly strong friction fit, the 1/4" x 1/8" keyseat is the primary method for handling peak torque loads. Using a keyed shaft is highly recommended for any motor-driven HVAC application to prevent slippage and damage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
