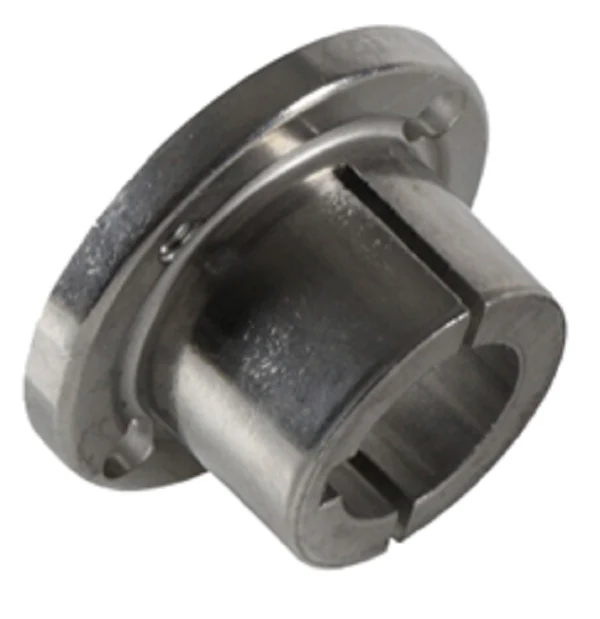

Browning H 1 Bushing
The Browning H 1 Bushing is a high-performance H Series split taper bushing designed for precise 1-inch shaft mounting in industrial HVAC drive systems. This component utilizes a 1-inch bore with a standard 1/4" x 1/8" keyseat to provide a secure, non-slip mechanical connection for sheaves, pulleys, and sprockets. Engineered with a double-split barrel and a 3/4" per foot taper, it ensures maximum concentricity and clamping force, effectively eliminating shaft fretting and vibration under high-torque loads. The split taper design allows for keyed attachment to both the shaft and the hub, facilitating easier installation and removal compared to standard press-fit bushings. Built for durability in power transmission applications, this split taper bushing maintains critical alignment and reduces mechanical stress on drive components, making it a reliable choice for professional contractors managing commercial blowers and motor assemblies.
Key Benefits- Enhanced Concentricity: The double-split barrel design provides a 360-degree grip for superior shaft alignment and balanced operation.
- High Torque Capacity: Dual-keying to both the shaft and the hub delivers positive drive performance without relying solely on cap screw tension.
- Simplified Maintenance: The 3/4" per foot self-locking taper allows for rapid removal and repositioning, reducing downtime during belt or pulley service.
- Standardized Compatibility: Fully compatible with H-series sheaves and sprockets, ensuring seamless integration into existing power transmission setups.
- Industrial Construction: Manufactured from sintered steel or ductile iron to withstand the rigors of continuous HVACR operation.
Is the keyseat size standard for a 1-inch bore H-Series bushing?
Yes, the Browning H 1 features a standard 1/4" x 1/8" keyway, which is the industry standard for 1-inch diameter shafts to ensure proper torque distribution.
Does this bushing include the necessary mounting hardware?
Standard H-series bushings typically require two 1/4" x 3/4" cap screws for mounting. Always verify your specific sheave or sprocket bolt circle requirements, which is 2 inches for this series.
Can this be used as a replacement for QD-style bushings?
While both are tapered, split taper bushings like the H 1 are not directly interchangeable with QD (Quick Disconnect) bushings due to different barrel tapers and bolt patterns. Always match the bushing type to the hub design.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
