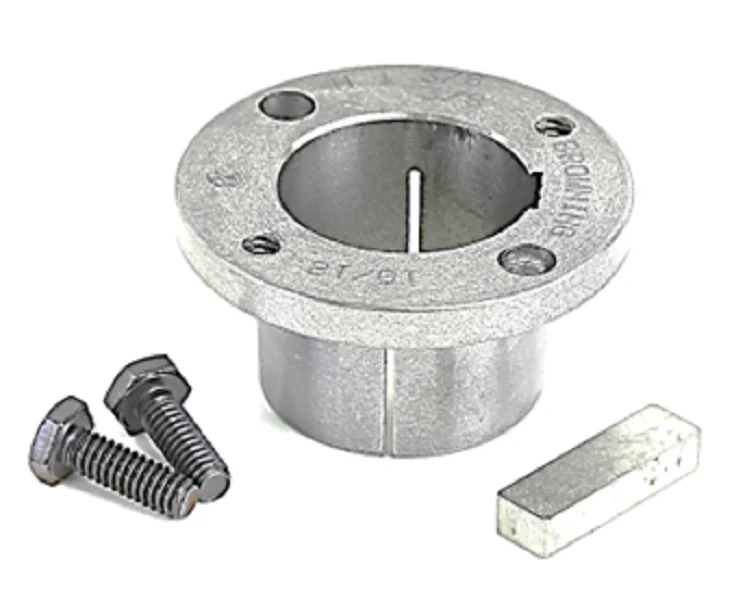

Browning H 1 3/8 3/8 Bushing
For professional HVACR drive assemblies, the Browning H 1 3/8 3/8 Bushing provides the critical mechanical link between your power source and system components. This H series split taper bushing is engineered with a 1 3/8-inch bore and a dedicated 3/8" x 3/16" keyseat, ensuring positive torque transmission without the risk of shaft slippage. The split taper design features a double-split barrel that provides a uniform, 360-degree clamp on drive shafts, maintaining superior concentricity for high-speed pulley and sheave applications. Built from high-strength sintered steel or ductile iron, this component is designed for the high-torque demands often found in belt-driven blower and motor assemblies. Following the standard 3/4" per foot taper, it allows for easy installation and removal even after long periods of operation in harsh mechanical environments. Incorporating Browning split taper bushings into your fleet ensures exact alignment and reduces vibration across your power transmission system.
Key Benefits:
- Mechanical Locking: The 3/4" per foot self-locking taper provides a secure friction fit that prevents axial movement during startup.
- True Concentricity: A solid flange design coupled with the double-split barrel ensures the component remains centered on the shaft, reducing bearing wear.
- High Torque Capacity: Dual-keying (to both the shaft and the hub) allows for maximum torque transfer in industrial HVACR gear.
- Versatile Compatibility: Standard 2" bolt circle allows for quick replacement in existing split taper sheave and sprocket setups.
Common Questions:
What is the correct wrench torque for the H series cap screws?
Standard 1/4" x 3/4" cap screws used in the H series bushing should typically be tightened to 95 in-lbs to ensure a secure split taper connection.
Is the key included with this Browning bushing?
Yes, this specific 1 3/8" bore bushing is supplied with the matching 3/8" key required for the keyway engagement on the shaft.
Can I use this on a shaft without a keyway?
While the split taper provides significant clamping force, it is optimized for use with a 3/8" x 3/16" keyway to manage full operational torque transmission in HVACR systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
