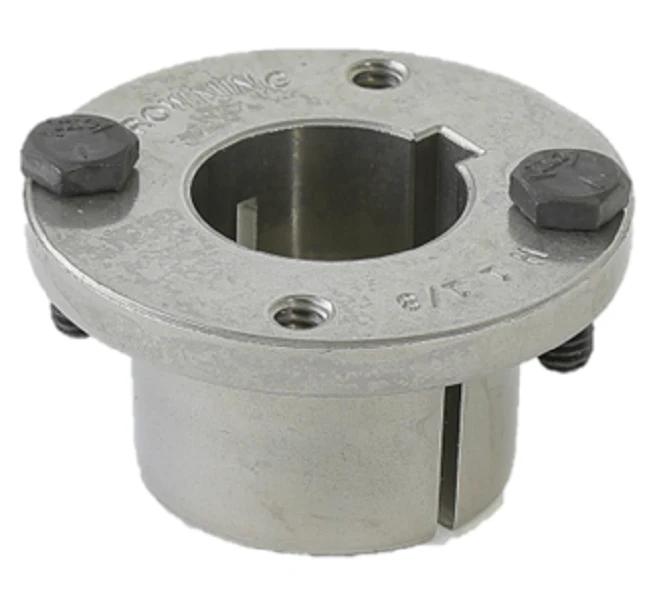

Browning H 1 1/8 CLEAR PK Bushing
The Browning H 1 1/8 CLEAR PK Bushing is a heavy-duty H Series split taper bushing engineered for precise concentric clamping in high-torque HVACR and industrial power transmission systems. Featuring a 1-1/8 inch bore with a standard 1/4 inch x 1/8 inch keyseat, this component is designed to secure sheaves, pulleys, and sprockets to 1.125-inch shafts with superior grip and minimal vibration. The double-split barrel ensures a positive clamp fit, distributing pressure evenly across the shaft to prevent slippage during operation. Constructed from high-strength sintered steel or ductile iron, it maintains exceptional structural integrity under load, supporting a wrench torque of 95 lb-in. The 3/4 inch per foot taper offers a self-locking mechanism that simplifies installation and removal while providing the highest degree of mechanical locking. Packaged in a clear pack for easy shelf identification, this split taper mounting bushing is fully interchangeable with competitive units, making it an essential standard for field maintenance and system upgrades.
Key Benefits- Concentric Alignment: The solid flange and double-split barrel design ensure better concentricity to the shaft, reducing rotational imbalance and extending the life of connected power transmission components.
- High Torque Transmission: Features a self-locking taper and a robust 1/4" keyway to handle significant loads without the risk of shaft scouring or keyway deformation.
- Durable Material: Manufactured from sintered steel, providing high fatigue resistance and dependable performance in demanding blower or compressor applications.
- Universal Interchangeability: This H series bushing follows standard industry dimensions, allowing for seamless integration with Browning sheaves and other compatible split-taper components.
- What is the recommended torque for the cap screws? To ensure a secure fit without overstressing the material, the cap screws (size 1/4" x 3/4") should be tightened to a 95 lb-in wrench torque.
- Is this bushing keyed to both the shaft and the hub? Yes, the Browning H Series design is keyed to both the shaft and the hub, providing a positive drive where the external key carries the load, keeping the cap screws free from torque stress.
- Can this be used on a shaft without a keyway? While the split taper design provides strong clamping force, the 1/4" x 1/8" keyway is critical for full rated torque transmission. Using it on a smooth shaft is not recommended for high-load applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
