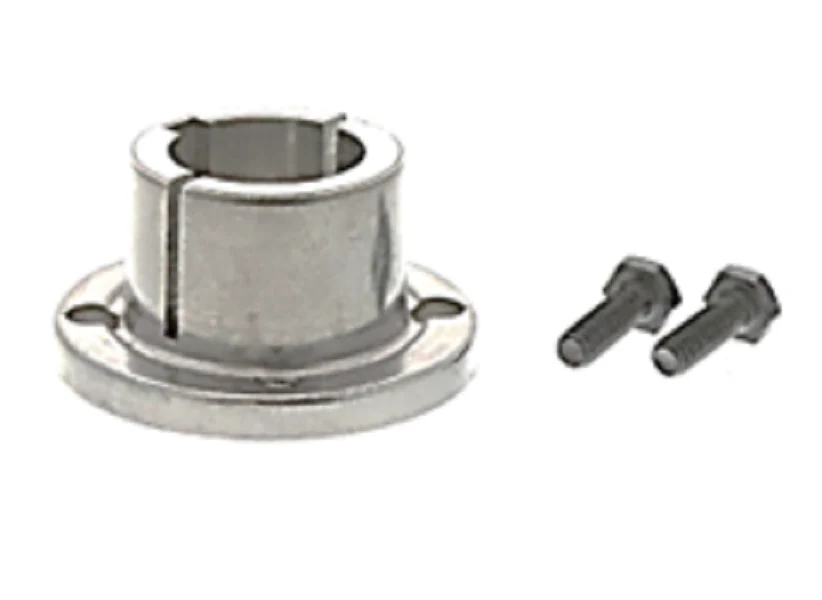

Browning H 1 1/8 Bushing
The Browning H 1 1/8 Bushing is a critical power transmission component engineered for high-precision mounting in HVACR and industrial drive systems. This H series split taper bushing features a 1-1/8 inch finished bore and a standard 1/4" x 1/8" keyseat, designed to facilitate a secure, fail-safe connection between shafts and rotating components like sheaves, pulleys, or sprockets. Built with a solid flange and double-split barrel, it ensures superior concentricity and a powerful clamp fit that minimizes vibration and shaft wear. The 3/4" per foot taper provides a reliable mechanical lock, while the sintered steel or ductile iron construction delivers the structural integrity required for high-torque HVAC applications. With a 2.5" outside diameter and 1.25" length through bore, this component is a direct replacement for standard H-series specifications from major manufacturers. Utilizing two 1/4" x 3/4" cap screws, technicians can achieve consistent 95 in-lb wrench torque for optimal assembly stability without risking hub deformation.
Key Benefits:- True Concentricity: The double-split barrel design provides a uniform grip around the full circumference of the shaft, reducing runout.
- Positive Drive: Integrated keyset and high-torque capacity ensure dependable power transfer in heavy-duty blower and pump assemblies.
- Easy Installation: Features threaded removal holes in the flange for simplified disassembly, even after long periods of operation in harsh environments.
- Interchangeability: Standardized H-series dimensions allow for seamless integration with existing Browning, Martin, or Dodge split taper hubs.
- What is the recommended torque for the cap screws? For the H-series bushing, use a calibrated torque wrench to tighten the 1/4" cap screws to 95 inch-pounds.
- Should I lubricate the bushing or shaft during install? No. Never apply lubricant to the bushing barrel, hub bore, or screws, as this can lead to excessive wedge pressure and potential component breakage.
- Is a key included with this bushing? This 1-1/8" bore bushing is designed for use with a standard 1/4" x 1/8" shaft key. Always verify your shaft keyway matches these dimensions before mounting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
