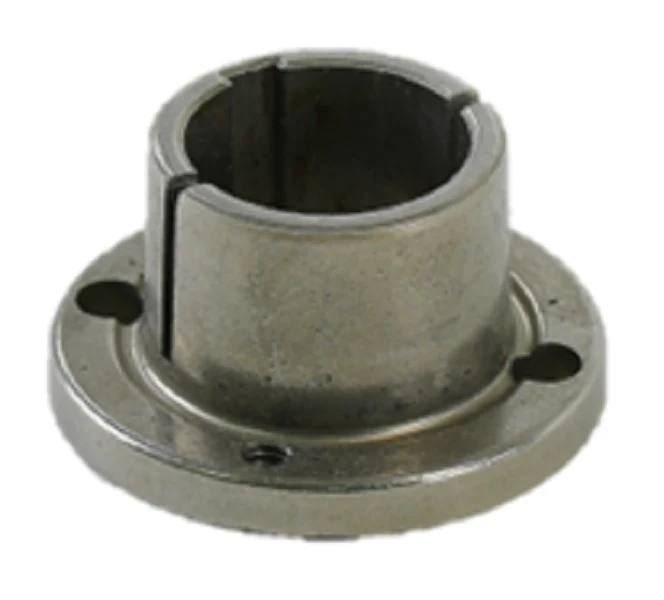

Browning H 1 1/4 Bushing
The Browning H 1 1/4 Bushing is a precision-engineered H Series splitter taper bushing designed for high-performance mechanical power transmission. Featuring a 1 1/4 inch bore and a standardized 1/4 inch x 1/8 inch keyseat, this component ensures a secure, keyed connection between shafts and hubs, eliminating slippage in demanding HVACR and industrial drive systems. The split taper design incorporates a 3/4" per foot taper and a double-split barrel, providing a high degree of concentricity and a positive clamp fit that reduces vibration and extends the life of connected sheaves, sprockets, and pulleys.
Constructed from durable sintered steel or ductile iron, this split taper bushing provides superior torque carrying capacity. The solid flange design maintains alignment during high-torque startup, while the included two 1/4 x 3/4 cap screws allow for simplified installation and straightforward removal during routine maintenance. This tapered shaft bushing is widely utilized in centrifugal fans, axial blowers, and air handling units where reliable shaft-to-hub synchronization is critical for system efficiency.
Key Benefits:- Concentric Shaft Gripping: The double-split barrel provides 360-degree clamping force for superior shaft-to-hub alignment.
- High Torque Transmission: External keys on the H Series bushing transfer torque directly, relieving stress on the mounting cap screws.
- Standardized Compatibility: Fully interchangeable with industry-standard H-series bushings for seamless replacement in existing belt drive systems.
- Durable Material: Engineered from high-strength steel to resist deformation under heavy radial loads and high-speed operation.
- What is the torque specification for the H 1 1/4 bushing cap screws? The recommended wrench torque for the 1/4" cap screws is 95 in-lbs to ensure a secure mechanical lock without over-stressing the barrel.
- Does this bushing require a separate key for the shaft? The bushing is keyed to both the shaft and the hub, providing a positive drive. A standard 1/4" x 1/8" key is typically included or used to engage the keyseat.
- Is the Browning H series compatible with other brands? Yes, the Browning split taper system is designed for dimensional interchangeability with most major manufacturers' H-series sheaves and hubs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
