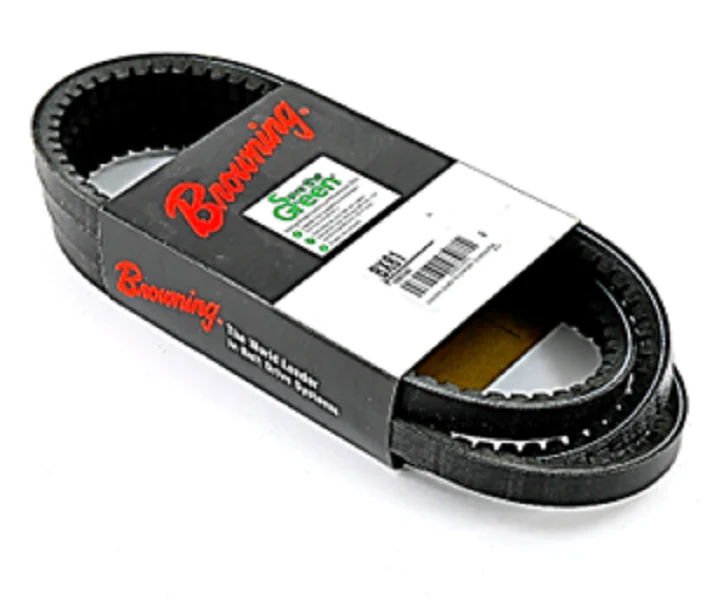

Browning BX81 Belt
The Browning BX81 is a high-performance Gripnotch V-Belt engineered for the demanding environments typical of commercial HVACR systems. This BX section belt features a 21/32-inch top width and a nominal outside length of 84 inches, making it a rugged solution for high-torque applications. Unlike standard wrapped belts, the Browning BX81 is constructed with precision molded cogs that significantly increase surface area for superior heat dissipation. This design allows the belt to maintain a cooler operating temperature even when running over smaller sheaves, preventing the rapid degradation often seen in high-velocity fan drives and blowers.
Built from advanced EPDM compound, this cogged V-belt offers an expanded temperature range from -70°F to 250°F, ensuring reliability in both extreme cold starts and high-heat mechanical rooms. The raw-edge sidewalls provide an aggressive gripping contact with the pulley, reducing vibration and slippage for more efficient power transmission. Additionally, the high-tensile polyester cords are specially treated to resist elongation, which minimizes the need for frequent re-tensioning. With the Browning Code 1 match system, these belts deliver tight tolerances that meet or exceed ARPM standards, ensuring seamless performance in multiple-belt drive configurations.
Key Benefits for the Jobsite:- Enhanced Flexibility: The Gripnotch design allows for a smaller bending radius, making it ideal for compact drive footprints and tight pulley diameters.
- Maximum Power Density: Rated for higher horsepower than standard belts, allowing for more efficient drive designs without increasing hardware size.
- Environmental Resistance: The EPDM construction is naturally oil and chemical resistant and meets static dissipating standards (ARPM IP-3-3).
- Quiet Operation: Precision-engineered cogged profiles reduce the acoustic signature of air handlers and exhaust systems.
Can I use a BX81 to replace a standard B81 wrapped belt?
Yes, BX section belts are fully compatible with the same sheaves as B section v-belts. In most cases, upgrading to a cogged BX81 provides better efficiency and lower operating temperatures.
What is the difference between outside length and pitch length for this belt?
The Browning BX81 has a nominal outside length of 84 inches, while its pitch length is approximately 82.8 inches. Always verify the BX designation to ensure proper seating in the pulley groove.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
