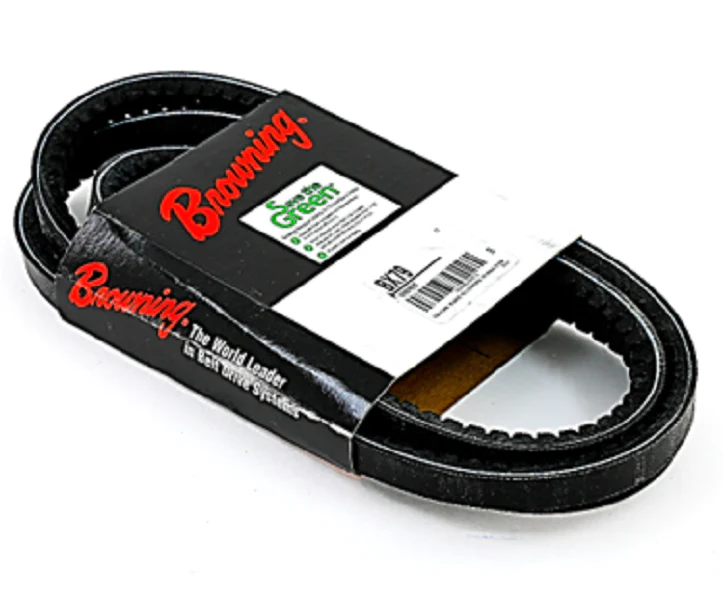

Browning BX79 Belt
The Browning BX79 is a high-performance Gripnotch V-Belt designed for heavy-duty HVACR and industrial applications. This BX Section Cogged V-Belt features an 82-inch Outside Diameter and a 21/32-inch top width, engineered to handle the high-torque demands of commercial air handlers, cooling towers, and pump systems. The EPDM rubber construction provides an expanded operating temperature range from -60°F to 250°F, ensuring the belt remains flexible and efficient even in extreme mechanical rooms or rooftop environments. Unlike standard wrapped belts, the precision molded cogs increase surface area for superior heat dissipation and allow the belt to wrap around smaller sheaves without excessive bending stress.
For contractors managing multi-belt drives, the Browning BX79 utilizes the Code 1 Match system, guaranteeing that all belts of the same size meet tighter-than-RMA tolerances for uniform load distribution. The raw-edge sidewalls provide an aggressive grip on the pulley, minimizing slippage and reducing energy loss. High-tensile synthetic cords are flex-bonded to the belt body to resist elongation and maintain consistent tension throughout its service life. When upgrading from a standard B-section belt to this notched V-belt, technicians will notice quieter operation and improved horsepower capacity due to the reduced internal friction of the cogged design.
Key Benefits:- Enhanced Heat Dissipation: Precision molded cogs run cooler than wrapped belts, preventing premature hardening and cracking in hot HVAC enclosures.
- High Torque Capacity: Raw-edge construction and high-strength tensile cords support higher horsepower ratings for demanding blower and fan drives.
- EPDM Durability: Superior resistance to oil, ozone, and extreme temperatures compared to standard neoprene belts.
- System Efficiency: Increased flexibility reduces energy consumption by lowering the force required to bend the belt around the sheave.
- Match Guarantee: Part of the Code 1 Match system, ensuring consistent lengths for multiple-groove pulley applications.
- Can I use a BX79 to replace a standard B79 wrapped belt? Yes, the Browning BX79 is a direct dimensional replacement for the B79. The cogged design is more efficient and provides a longer life in most HVAC applications, especially on smaller pulleys.
- What is the difference between outside diameter and pitch length for this part? This belt has an 82-inch nominal outside length and a pitch length of approximately 80.8 inches. Always verify your center distance and take-up adjustment before installation.
- Why choose EPDM rubber for rooftop air handlers? EPDM is specifically chosen for its ability to withstand UV exposure and wide temperature swings, preventing the "dry rot" often seen with standard rubber belts in outdoor units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
