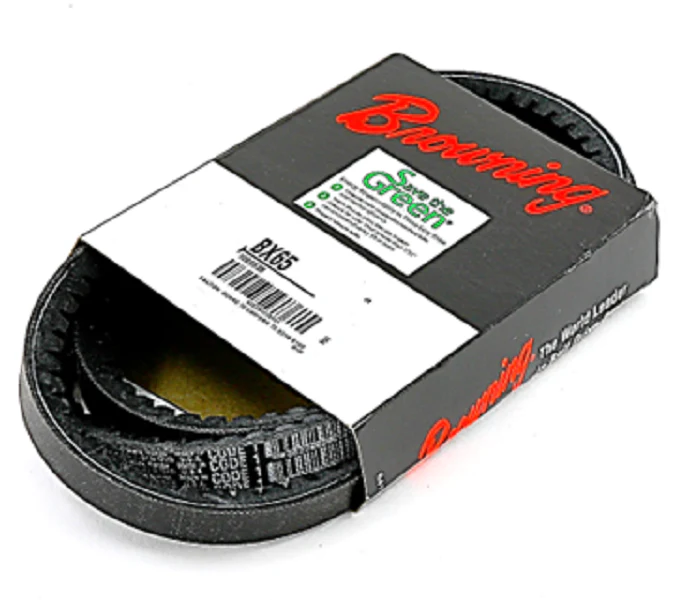

Browning BX65 Belt
The Browning BX65 Belt is a high-performance Gripnotch V-Belt engineered for heavy-duty industrial and HVACR drive systems. Featuring a 68" Outside Diameter and a technical BX Section profile, this belt is constructed with specialized EPDM rubber to withstand extreme temperature ranges from -40°F to 250°F. The precision-molded cogs are a critical design feature, providing increased surface area for rapid heat dissipation and allowing the belt to operate efficiently over smaller sheave diameters without the stress of excessive bending. Unlike standard wrapped belts, the raw-edge sidewalls of the BX65 ensure superior gripping contact with the pulley, significantly reducing slippage and maximizing horsepower transmission. Reinforced with high-tensile polyester cord, this belt maintains exceptional dimensional stability and longitudinal flexibility, making it a reliable choice for commercial air handlers, cooling towers, and pump applications where uptime is paramount.
Key Benefits- Enhanced Efficiency: The Gripnotch design provides higher horsepower ratings and lower energy consumption compared to standard B-section belts.
- Superior Durability: Heat-resistant EPDM compound protects against cracking and environmental degradation in demanding rooftop or mechanical room environments.
- Code 1 Matching: Designed to meet Browning Code 1 tolerances, ensuring matched belt sets for multi-groove drives without the need for manual sorting.
- Reduced Maintenance: High-strength synthetic cords minimize stretch, reducing the frequency of re-tensioning during seasonal maintenance cycles.
What is the difference between a BX65 and a standard B65 belt?
The Browning BX65 features a notched (cogged) construction and raw-edge sidewalls, which allow for better heat management and higher torque capacity than the wrapped B65 version.
Can this belt replace a wrapped belt on the same sheave?
Yes, the BX65 is a direct performance upgrade for B-section wrapped belts, provided the sheave dimensions are compatible with a 21/32" top width.
How do I verify the length of this belt?
The BX65 has a 68-inch outside length and a 65-inch nominal inside length, designated by the "65" in the part number.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Browning BX65 Belt
The Browning BX65 Belt is a high-performance Gripnotch V-Belt engineered for heavy-duty industrial and HVACR drive systems. Featuring a 68" Outside Diameter and a technical BX Section profile, this belt is constructed with specialized EPDM rubber to withstand extreme temperature ranges from -40°F to 250°F. The precision-molded cogs are a critical design feature, providing increased surface area for rapid heat dissipation and allowing the belt to operate efficiently over smaller sheave diameters without the stress of excessive bending. Unlike standard wrapped belts, the raw-edge sidewalls of the BX65 ensure superior gripping contact with the pulley, significantly reducing slippage and maximizing horsepower transmission. Reinforced with high-tensile polyester cord, this belt maintains exceptional dimensional stability and longitudinal flexibility, making it a reliable choice for commercial air handlers, cooling towers, and pump applications where uptime is paramount.
Key Benefits- Enhanced Efficiency: The Gripnotch design provides higher horsepower ratings and lower energy consumption compared to standard B-section belts.
- Superior Durability: Heat-resistant EPDM compound protects against cracking and environmental degradation in demanding rooftop or mechanical room environments.
- Code 1 Matching: Designed to meet Browning Code 1 tolerances, ensuring matched belt sets for multi-groove drives without the need for manual sorting.
- Reduced Maintenance: High-strength synthetic cords minimize stretch, reducing the frequency of re-tensioning during seasonal maintenance cycles.
What is the difference between a BX65 and a standard B65 belt?
The Browning BX65 features a notched (cogged) construction and raw-edge sidewalls, which allow for better heat management and higher torque capacity than the wrapped B65 version.
Can this belt replace a wrapped belt on the same sheave?
Yes, the BX65 is a direct performance upgrade for B-section wrapped belts, provided the sheave dimensions are compatible with a 21/32" top width.
How do I verify the length of this belt?
The BX65 has a 68-inch outside length and a 65-inch nominal inside length, designated by the "65" in the part number.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
