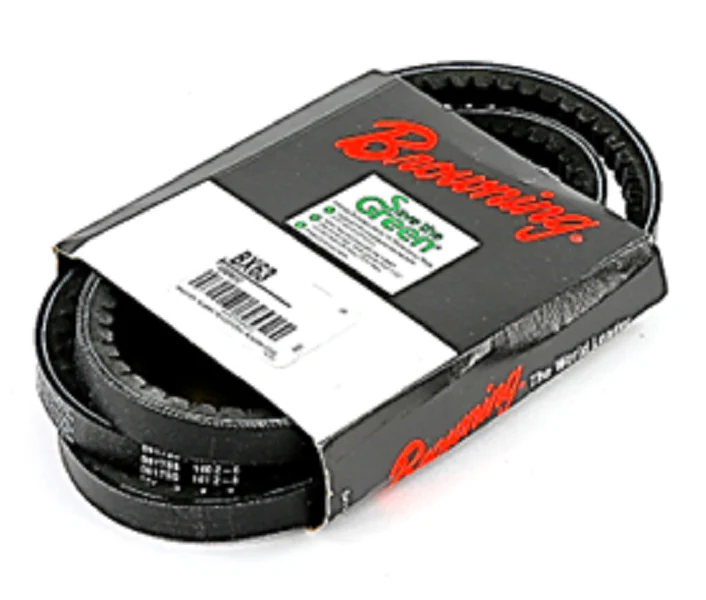

Browning BX63 Belt
As a veteran HVACR technician, I know that when you're dealing with high-torque industrial blowers or heavy-duty pump drives, you need a belt that can handle the sheer without glazing. The Browning BX63 Belt is a cogged V-belt engineered specifically for these demanding applications. With a 66-inch outside diameter and a 64.8-inch pitch length, this Type BX Gripnotch Belt utilizes a 21/32" top width to maximize sheave contact. Unlike standard wrapped belts, the EPDM rubber construction of the BX63 is resistant to oil and heat, maintaining its structural integrity in ambient temperatures ranging from -60°F to +250°F. The precision molded cogs are the key to its performance, providing increased surface area for rapid heat dissipation and allowing the belt to navigate smaller pulley diameters without the cracking associated with traditional profiles. Utilizing high-tensile cord reinforcement, this belt minimizes elongation and ensures consistent power transmission efficiency, helping you avoid the nuisance of frequent retensioning on the job site.
Key Benefits
- High Horsepower Capacity: The raw-edge sidewalls and notched V-belt design offer significantly higher horsepower ratings than conventional wrapped belts, making it ideal for compact drive systems.
- Superior Thermal Stability: Constructed from a high-grade EPDM compound, this belt is built to survive the extreme temperature fluctuations found in rooftop AHU environments.
- Reduced Vibration: The Gripnotch profile and "Code 1" match precision ensure smooth, quiet operation, which is critical for preventing premature bearing wear in motor assemblies.
- Enhanced Flexibility: Molded cogs allow for a smaller bend radius, enabling the Browning BX63 to run cooler and last longer on drives with tight center distances.
- Static Conductivity: Safely dissipates static build-up, meeting standard industrial requirements for sensitive HVACR applications.
Common Questions
Can I use a BX63 notched belt as a direct replacement for a standard B63 wrapped belt?
Yes, the BX section shares the same cross-sectional dimensions as the B section. Upgrading to a Browning Gripnotch belt usually results in improved efficiency and cooler running temperatures on the same sheaves.
Does the BX63 require a different tensioning procedure than wrapped belts?
While the installation is the same, cogged V-belts often retain their tension better over time. However, it is standard practice to check tension after the initial 24-hour run-in period to account for any initial seating in the sheave grooves.
What causes the sidewalls of a BX belt to glaze or burn?
This is typically a sign of insufficient tension or a mismatched pulley. Always ensure the sheave grooves are not worn beyond 1/32" and that the BX63 is properly seated to prevent the slippage that leads to heat damage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $29.23
-65%$29.23
$10.23Browning BX63 Belt
As a veteran HVACR technician, I know that when you're dealing with high-torque industrial blowers or heavy-duty pump drives, you need a belt that can handle the sheer without glazing. The Browning BX63 Belt is a cogged V-belt engineered specifically for these demanding applications. With a 66-inch outside diameter and a 64.8-inch pitch length, this Type BX Gripnotch Belt utilizes a 21/32" top width to maximize sheave contact. Unlike standard wrapped belts, the EPDM rubber construction of the BX63 is resistant to oil and heat, maintaining its structural integrity in ambient temperatures ranging from -60°F to +250°F. The precision molded cogs are the key to its performance, providing increased surface area for rapid heat dissipation and allowing the belt to navigate smaller pulley diameters without the cracking associated with traditional profiles. Utilizing high-tensile cord reinforcement, this belt minimizes elongation and ensures consistent power transmission efficiency, helping you avoid the nuisance of frequent retensioning on the job site.
Key Benefits
- High Horsepower Capacity: The raw-edge sidewalls and notched V-belt design offer significantly higher horsepower ratings than conventional wrapped belts, making it ideal for compact drive systems.
- Superior Thermal Stability: Constructed from a high-grade EPDM compound, this belt is built to survive the extreme temperature fluctuations found in rooftop AHU environments.
- Reduced Vibration: The Gripnotch profile and "Code 1" match precision ensure smooth, quiet operation, which is critical for preventing premature bearing wear in motor assemblies.
- Enhanced Flexibility: Molded cogs allow for a smaller bend radius, enabling the Browning BX63 to run cooler and last longer on drives with tight center distances.
- Static Conductivity: Safely dissipates static build-up, meeting standard industrial requirements for sensitive HVACR applications.
Common Questions
Can I use a BX63 notched belt as a direct replacement for a standard B63 wrapped belt?
Yes, the BX section shares the same cross-sectional dimensions as the B section. Upgrading to a Browning Gripnotch belt usually results in improved efficiency and cooler running temperatures on the same sheaves.
Does the BX63 require a different tensioning procedure than wrapped belts?
While the installation is the same, cogged V-belts often retain their tension better over time. However, it is standard practice to check tension after the initial 24-hour run-in period to account for any initial seating in the sheave grooves.
What causes the sidewalls of a BX belt to glaze or burn?
This is typically a sign of insufficient tension or a mismatched pulley. Always ensure the sheave grooves are not worn beyond 1/32" and that the BX63 is properly seated to prevent the slippage that leads to heat damage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
