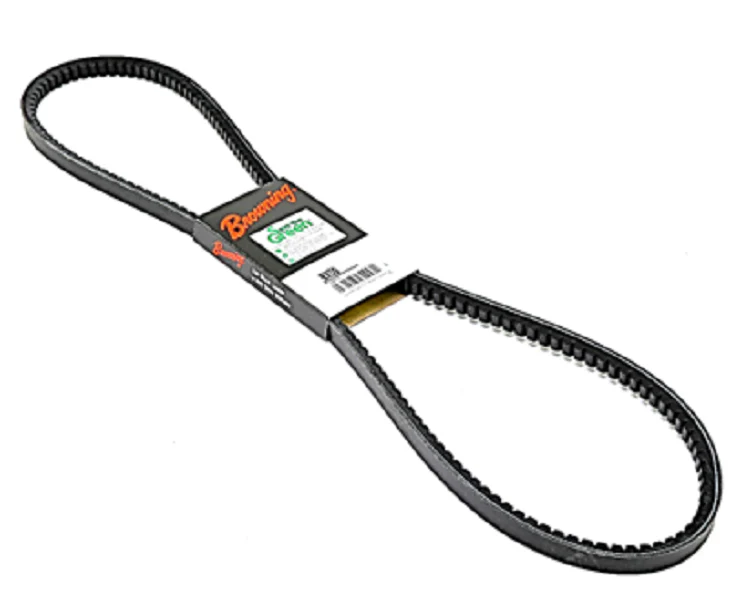

Browning BX59 Belt
The Browning BX59 Belt is a high-performance, cogged V-belt engineered specifically for heavy-duty industrial and HVACR applications. Built with a 62" outside diameter and a 21/32" top width, this Type BX Gripnotch belt features an EPDM construction that provides an expanded operating temperature range from -60°F to +250°F. This makes it a preferred choice for roof-top air handlers and heat-sensitive motor drives where standard rubber belts typically fail. The precision-molded cogs increase surface area for superior heat dissipation and provide the necessary flexibility for smaller sheave diameters, reducing internal stress and increasing mechanical efficiency up to 98%.
Utilizing a high-tensile cord system, the BX59 offers excellent resistance to elongation and high torque loads, ensuring stable performance during startup and continuous operation. The raw-edge sidewalls enhance the gripping contact with pulley grooves, significantly reducing vibration and slippage compared to wrapped belts. As part of the Code 1 Match system, this belt meets tighter than RMA standards, allowing for easy multi-belt matching without the need for complex offset calculations. For contractors managing commercial blowers, fans, or pumps, the Browning BX59 delivers a rugged, low-maintenance solution designed to maximize the lifespan of both the belt and the bearings.
Key Benefits- EPDM Material: Resists heat, ozone, and oxidation while maintaining flexibility in extreme cold down to -60°F.
- Gripnotch Design: Provides higher horsepower ratings and cooler running temperatures than conventional wrapped belts.
- Raw-Edge Sidewalls: Ensures a smoother, quieter operation by maintaining consistent friction and reducing drive vibration.
- Precision Matching: The Browning Code 1 system guarantees identical lengths for uniform load distribution in multiple-belt drives.
- Energy Efficiency: Cogged profile reduces energy loss, potentially lowering electrical costs in high-duty cycle applications.
Can I replace a standard B59 belt with this BX59 Gripnotch?
Yes. The BX59 is dimensionally compatible with B59 pulleys. Switching to a notched belt often improves drive efficiency and is recommended for smaller pulleys where bending stress is a factor.
What is the difference between the outside diameter and pitch length for this part?
The Browning BX59 has a nominal 62-inch outside diameter and a 60.8-inch pitch length. It is critical to use these technical specifications when verifying center-distance requirements for your tensioner.
Is this belt suitable for oil-heavy environments?
The EPDM construction offers excellent resistance to heat and weather; however, while it has moderate oil resistance, it is primarily optimized for high-temperature and high-torque HVACR environments.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
