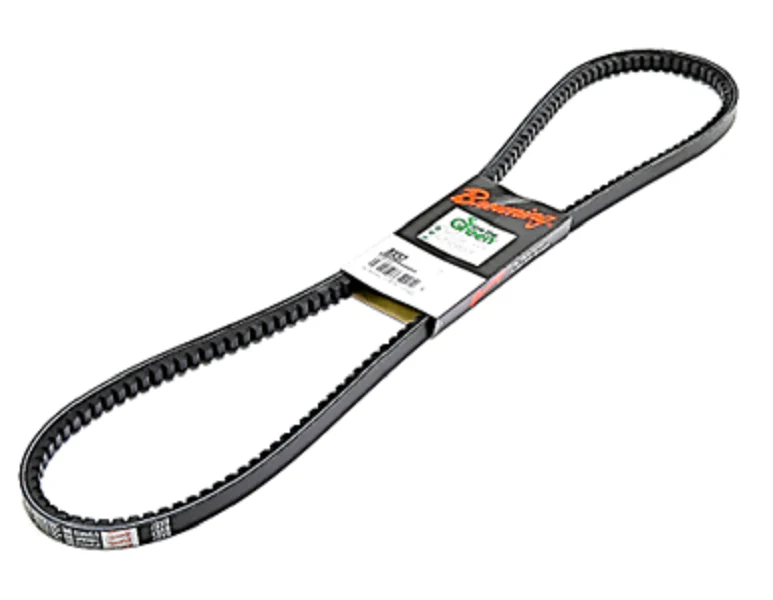

Browning BX57 Belt
The Browning BX57 Belt is a high-performance Gripnotch V-Belt engineered for heavy-duty HVACR applications where heat across the drive and tight sheave diameters are common. Constructed with an EPDM synthetic rubber compound, this Type BX cogged belt maintains structural integrity across a broad operating temperature range of -60°F to +250°F. The precision-molded cogs significantly increase surface area for superior heat dissipation while providing the necessary flexibility to operate on smaller pulley diameters without the bending stress found in standard wrapped belts.
For technicians managing multi-belt drives, the Browning BX57 features the Code 1 Match belt system. This ensures that every industrial v-belt meets or exceeds RMA standards for length consistency, allowing for even load distribution and reduced vibration. The raw-edge sidewalls provide a higher coefficient of friction against the pulley, delivering up to 98% efficiency and higher horsepower ratings than conventional B-section belts. This 60-inch outside diameter belt is specifically designed to handle the high-torque demands of HVAC blower motors and industrial fan drives.
Key Benefits- Enhanced Efficiency: Raw-edge cogged design provides up to 3% higher efficiency than wrapped belts by reducing internal friction and slippage.
- Heat Resistance: EPDM construction resists hardening and cracking in high-ambient rooftop units or enclosed mechanical rooms.
- Perfect Matching: Code 1 matching eliminates the need for specific match numbers when replacing sets on multi-groove sheaves.
- Reduced Maintenance: High-tensile polyester cords minimize elongation, reducing the frequency of re-tensioning for mechanical power transmission systems.
- Optimized Grip: Notched profile allows for improved wrapping on small pulleys, maximizing torque transfer in compact motor configurations.
Can I use a BX57 to replace a standard B57 belt?
Yes, the BX57 Gripnotch belt is a direct performance upgrade for a standard B57. It fits the same sheaves but offers better flexibility and higher horsepower capacity.
What are the exact dimensions of this belt?
The Browning BX57 has a 60-inch nominal outside length, a top width of 21/32 inch, and an approximate thickness of 13/32 inch.
Is this belt suitable for static-sensitive environments?
Yes, these belts are manufactured to meet ARPM standards for static conductivity, making them safe for use in air handling units where static dissipation is required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
