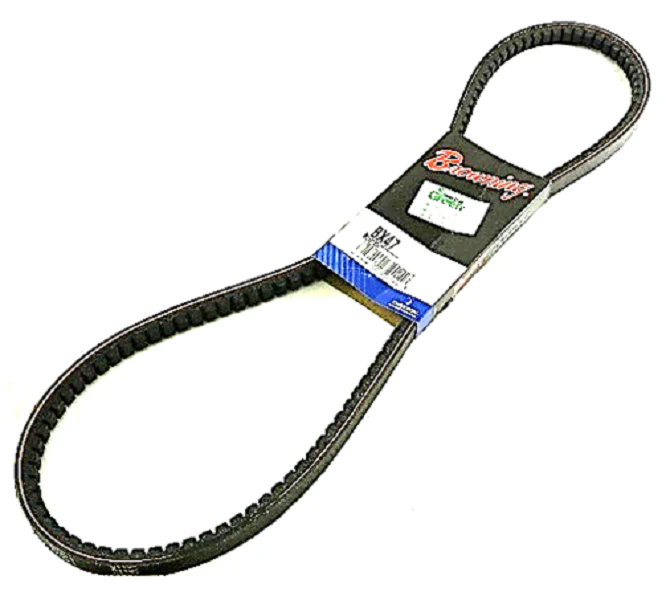

Browning BX47 Belt
The Browning BX47 is a high-performance Gripnotch V-Belt engineered for the demanding duty cycles of commercial HVACR systems. Designed with a BX section profile, this belt features an outside diameter of 50 inches and a 21/32 inch top width, making it a drop-in upgrade for standard wrapped belts in air handlers, centrifugal fans, and industrial pump drives. Constructed from advanced EPDM rubber, the BX47 maintains structural integrity across a broad operating temperature range of -60°F to +250°F, mitigating the risk of heat-cracking in high-ambient rooftop installations.
The precision-molded cogs increase surface area for superior heat dissipation while enhancing flexibility around sub-minimum pitch diameter sheaves. This technical design allows for increased horsepower capacity and up to 3% higher energy efficiency compared to traditional wrapped belts. Utilizing high-tensile cords and raw-edge sidewalls, the BX47 ensures a high coefficient of friction to prevent slippage and belt squeal during high-torque startups. It meets all RMA standards for static conductivity and oil resistance, ensuring reliable power transmission and reduced vibration in critical mechanical environments.
Key Benefits for Technicians:- Code 1 Match System: Ensures tighter-than-RMA tolerances for easy belt matching and synchronized load sharing in multiple-belt drives.
- EPDM Construction: Superior resistance to ozone and heat aging compared to standard neoprene belts.
- Higher Torque Rating: Notched profile provides significantly more power-carrying capacity, allowing for more compact drive designs.
- Vibration Dampening: Ground-form sidewalls reduce sheave wear and bearing stress for smoother operation.
Can I use a BX47 to replace a standard B47 wrapped belt?
Yes. The BX47 is a direct replacement that fits the same sheave grooves but offers better efficiency and a higher horsepower rating.
Is this belt suitable for outside rooftop units?
Yes, the EPDM material is specifically designed to withstand extreme UV exposure and temperature fluctuations without hardening or slipping.
How do I ensure the best performance during installation?
Always inspect pulleys for groove wear. A worn sheave can reduce belt efficiency by over 5%. Re-tension the belt after a 15-minute run-in period to account for initial seating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
