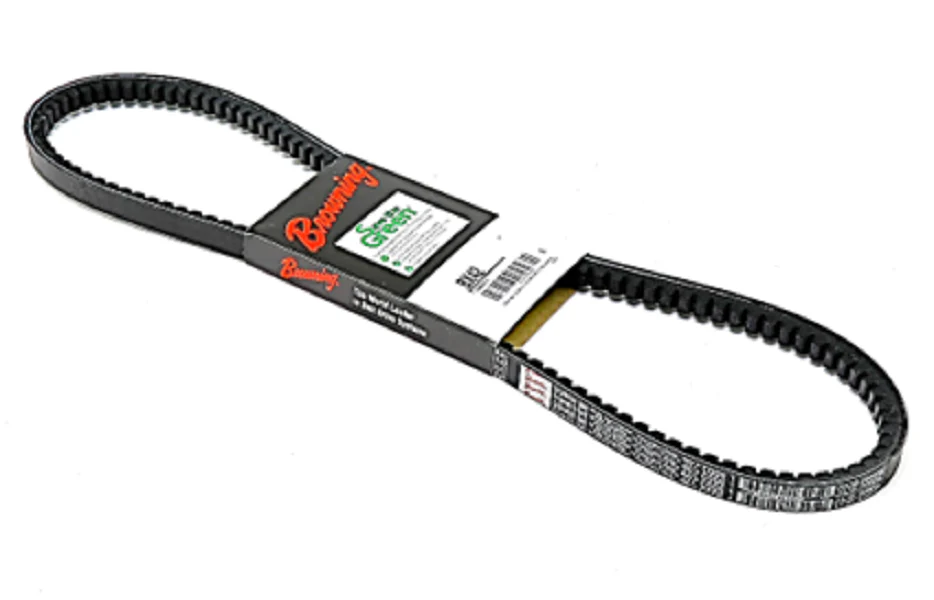

Browning BX42 Belt
The Browning BX42 Belt is a high-performance Gripnotch V-Belt engineered for demanding HVACR applications, including air handling units, industrial fans, and centrifugal pumps. Constructed from advanced EPDM rubber, this cogged V-belt provides superior thermal stability, maintaining structural integrity in operating environments ranging from -60°F to +250°F. The precision-molded cogs increase surface area for rapid heat dissipation and allow the belt to operate efficiently on smaller diameter sheaves without excessive stress on the internal nylon reinforcing cords.
Designed with raw-edge sidewalls, the Browning BX42 ensures uniform engagement with the pulley grooves, minimizing slippage and optimizing torque transmission. This BX section belt features a 45-inch nominal outside length and a 43.8-inch pitch length, facilitating a direct HVAC belt replacement for wrapped V-belts to reduce vibration and energy loss. As part of the Code 1 Match system, it guarantees tight manufacturing tolerances for multi-belt drives, ensuring balanced load distribution across the entire set. Its static conductive and oil-resistant properties make it an essential power transmission component for critical mechanical systems.
Key Benefits- Maximum Heat Dissipation: Precision-molded cogs increase airflow and flexibility, preventing heat-related degradation in high-ambient mechanical rooms.
- High Horsepower Capacity: The BX42 Gripnotch profile delivers higher power ratings than standard wrapped belts, allowing for more compact drive designs.
- Superior Pulse and Vibration Control: Raw-edge sidewalls provide a consistent grip that reduces belt slip and bearing wear.
- Environmental Resilience: EPDM construction offers high resistance to water, oil, and ozone, extending the service interval for outdoor rooftop units.
- Precision Matching: Meets RMA standards for "Code 1" tolerance, allowing for easy selection of matched sets without manual measurement.
Is the Browning BX42 compatible with standard B-section pulleys?
Yes, as a BX section belt, it is designed to fit standard B-style sheaves but offers improved flexibility and efficiency over non-notched alternatives.
Can I mix this belt with a wrapped V-belt on the same drive?
It is not recommended to mix different belt types. For optimal performance and to prevent uneven cord loading, replace all belts in a multi-groove drive with Browning BX42 units simultaneously.
What are the specific dimensions of the BX42?
The Browning BX42 has a top width of 21/32 inches, a 45-inch outside circumference, and a 43.8-inch pitch length.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
