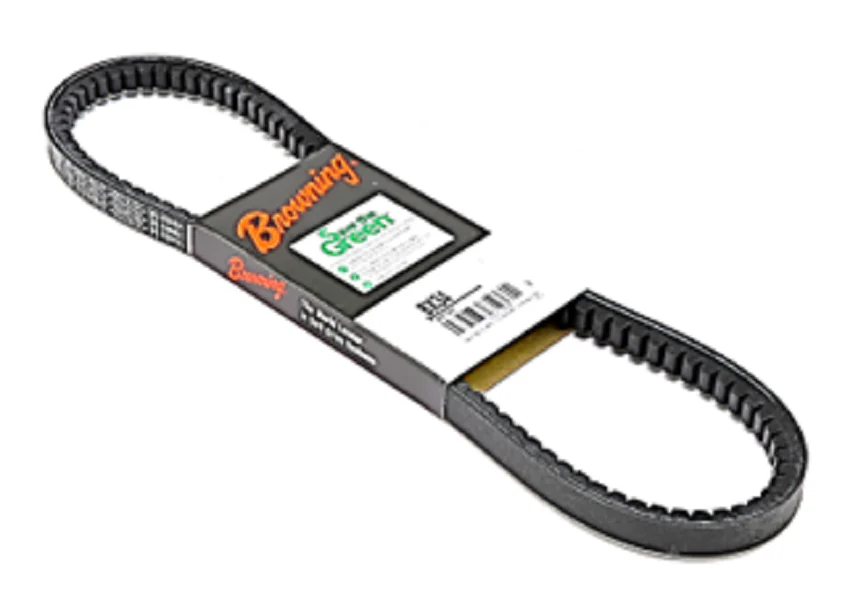

Browning BX34 Belt
The Browning BX34 Gripnotch Belt is a heavy-duty cogged V-belt engineered for precision power transmission in demanding HVACR and industrial drive systems. This BX-section belt features a 37" outside diameter (OD) and a 35.8" pitch length, specifically designed to outperform standard wrapped belts in high-torque applications. Utilizing a precision molded raw edge construction, the BX34 allows for greater flexibility when operating on smaller diameter sheaves, significantly reducing the bending stress and heat buildup that leads to premature failure. Built with advanced EPDM material, this belt maintains structural integrity across an expanded temperature range of -60°F to +250°F, making it a reliable choice for commercial fan and blower motor assemblies. The Browning Code 1 match tolerance ensures that any two belts of the same size will match within RMA standards, allowing for easy installation in multiple-belt drives without the need for manual matching.
Key Benefits
- High Horsepower Capacity: The notched design provides up to 30% more horsepower capacity than conventional wrapped belts by increasing surface contact and reducing internal friction.
- Reduced Vibration: Ground form sidewalls ensure a smoother, quieter operation and minimize initial tension loss, protecting motor bearings and drive components.
- Enhanced Heat Dissipation: Deeply molded cogs increase surface area to pull air into the sheave grooves, keeping the drive system cooler during continuous operation.
- Cross-Compatibility: Perfectly replaces standard B34 V-belts or 5L340 FHP belts in existing setups where higher efficiency and longevity are required.
Common Questions
Can I use a BX34 cogged belt in place of a standard B34 wrapped belt?
Yes. The Browning BX34 shares the same 21/32" top width as a classical B belt but offers superior flexibility and efficiency. Upgrading to a cogged version is often recommended for smaller pulleys or high-load HVAC fan drives.
What is the difference between outside diameter and pitch length for this belt?
The BX34 has a 37" nominal outside length. For technical calculations, technicians should use the 35.8" pitch length to ensure correct center distances and RPM ratios in the drive configuration.
How do I know if this belt is compatible with my motor sheave?
The BX34 belt is designed for standard B-groove sheaves. The notched profile is specifically beneficial for drives with sub-minimal pitch diameters where a standard wrapped belt would crack or slip.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
