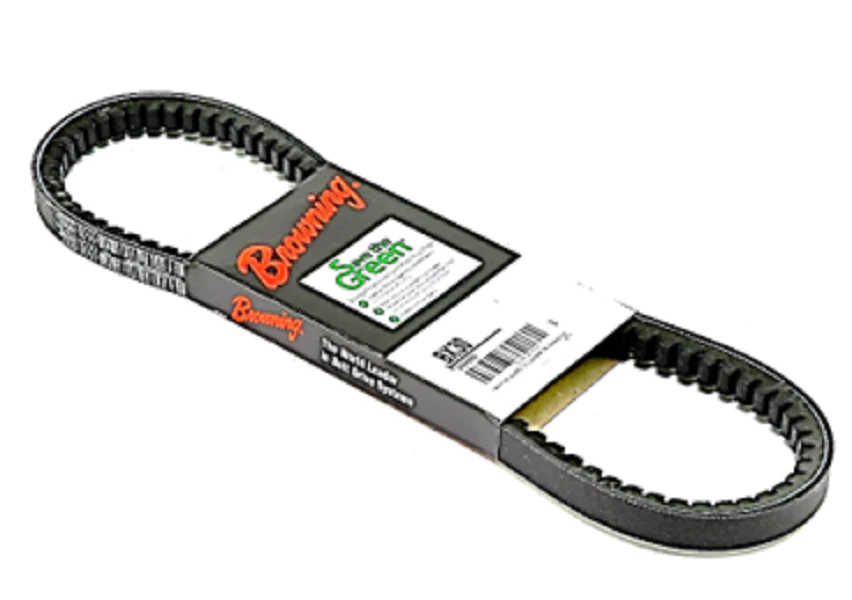

Browning BX30 Belt
The Browning BX30 Belt is a heavy-duty, 33-inch outside diameter Gripnotch V-belt engineered specifically for high-torque HVACR and industrial applications. Designed to replace standard wrapped belts, this Type BX cogged belt features precision-molded cogs that significantly improve flexibility and airflow around the belt. This raw-edge design allows for a 98% efficient power transmission, reducing internal heat buildup and longitudinal stress when operating on smaller diameter sheaves. Constructed with EPDM rubber and high-tensile cords, it maintains a consistent 31.8-inch pitch length and provides superior resistance to elongation. For contractors managing fan drives, blowers, or refrigeration compressors, the Browning BX30 offers a "Code 1" match tolerance, ensuring that multi-belt sets distribute loads evenly without independent tensioning issues. This industrial V-belt is rated for temperatures up to 250°F, making it a reliable choice for demanding mechanical rooms and rooftop units where thermal stability is a priority.
Key Benefits- Enhanced Efficiency: Raw-edge cogged design delivers up to 98% efficiency, reducing energy consumption compared to wrapped belts.
- Heat Dissipation: Precision-molded cogs increase surface area for cooling, preventing premature hardening in high-temp HVAC environments.
- Increased Horsepower Capacity: The notched construction allows for higher horsepower ratings and better grip on small pulleys.
- Code 1 Matching: Manufactured to strict tolerances, allowing for easy installation of matched sets without manual measurement.
- Durable EPDM Construction: Offers superior resistance to heat, ozone, and weather for extended service life in outdoor condenser units.
Can I use a BX30 belt to replace a standard B30 wrapped belt?
Yes. A Browning BX30 is a direct performance upgrade for a standard B30 belt. It utilizes the same BX section dimensions but provides better flexibility and higher torque capacity, especially on smaller sheaves.
What is the difference between outside length and pitch length for this belt?
The Browning BX30 has an outside length (OAL) of 33 inches and a pitch length of 31.8 inches. It is critical to use the pitch length when calculating center distances for new drive installations.
Is the BX30 resistant to oil and heat?
The EPDM rubber compound used in these Gripnotch belts is specifically formulated to handle ambient temperatures up to 250°F and provides excellent resistance to oil and grease common in mechanical drive applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
