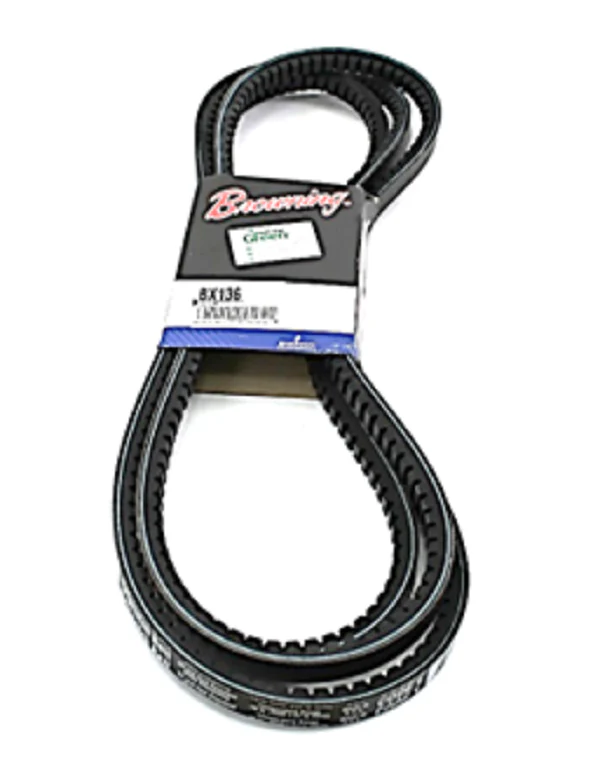

Browning BX136 Belt
The Browning BX136 Belt is a heavy-duty BX-section Gripnotch belt engineered for high-demand HVACR and industrial power transmission systems. Featuring a 139-inch outside diameter and a 137.8-inch pitch length, this cogged V-belt is constructed from premium EPDM rubber. This material choice ensures a broad operating temperature range from -60°F to +250°F, providing exceptional resistance to heat, ozone, and environmental weathering. The precision molded cogs increase surface area for superior heat dissipation and allow for higher flexibility when operating on smaller diameter sheaves.
Designed for contractors who prioritize drive efficiency, the Browning BX136 utilizes high-tensile synthetic fiber cords to minimize elongation and maintain critical tension over long duty cycles. Its raw-edge sidewalls offer an improved grip on pulley sidewalls, facilitating higher horsepower ratings and quieter operation compared to standard wrapped belts. Whether utilized in commercial air handlers, cooling towers, or industrial fan drives, this EPDM cogged belt delivers the Code 1 Match tolerance required for multiple-belt drives, ensuring uniform load distribution across the entire assembly.
Key Benefits- EPDM Construction: Superior resistance to heat cracking and environmental degradation compared to standard neoprene.
- Gripnotch Efficiency: Die-cut cogs allow for smaller pulley diameters while reducing energy loss through improved flex.
- High Horsepower Rating: Raw-edge design provides better traction and power transfer than traditional wrapped belts.
- Code 1 Match System: Ensures tight length tolerances for balanced performance in matched belt sets.
- Extreme Temperature Range: Maintains structural integrity in harsh mechanical rooms from -60°F to 250°F.
What is the difference between an AX and BX belt?
The Browning BX136 has a wider top width of 21/32" compared to the 1/2" profile of an A-section belt, allowing it to carry significantly higher torque loads in industrial applications.
Can I use the BX136 on a standard B-section pulley?
Yes, the BX-section is designed to fit standard B-style sheaves while offering the improved flexibility of a notched (cogged) profile.
Is this belt compatible with the newer TorqTitan Gen II series?
While the dimensions are identical, it is best practice not to mix standard Gripnotch belts with Gen II belts on the same drive to maintain optimal tensioning and load balance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
