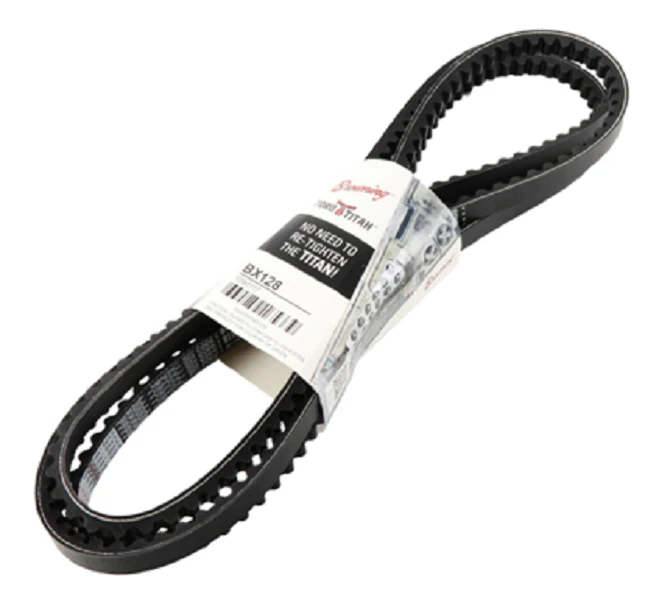

Browning BX128 Belt
The Browning BX128 Belt is a heavy-duty Gripnotch V-Belt designed for demanding commercial HVACR and industrial drive applications. Engineered with a BX section profile, this belt features an approximate 21/32" top width and 13/32" thickness, providing a robust contact surface for high-torque power transmission. With a 131" outside diameter (128" nominal inside length), it serves as a high-performance replacement for standard wrapped belts, offering up to 3% higher energy efficiency. The raw-edge cogged construction allows for superior flexibility, making it ideal for smaller diameter sheaves where heat buildup typically compromises belt life. Constructed from advanced EPDM rubber, this cogged V-belt maintains its physical properties across an extreme temperature range of -60°F to +250°F, ensuring reliability in rooftop air handlers and exhaust fan systems.
Key Benefits:
- Precision-Molded Cogs: Enhances flexibility and provides a larger surface area for heat dissipation, preventing premature hardening and cracking.
- High-Strength Tensile Cords: Utilizes synthetic polyester cords that are specially treated to resist elongation and handle shock loads without losing tension.
- Raw-Edge Sidewalls: Machined for uniform pulley contact, reducing vibration and ensuring a quieter, more stable operation for HVAC blower drives.
- One-Match System: Every Browning BX128 meets "Code 1" tolerances, allowing for easy multi-belt drive matching without the need for manual belt sorting.
- Chemical Resistance: The EPDM compound is naturally resistant to oil, heat, and ozone, meeting ARPM standards for static conductivity.
Common Questions:
Can I use a BX128 notched belt on the same pulleys as a standard B128 belt?
Yes. The BX128 has the same cross-sectional dimensions as a standard B-section belt (21/32" width). It is designed to run in the same sheaves while providing better grip and cooler operating temperatures.
Why is my HVAC belt slipping even if it is the correct size?
Slippage usually occurs due to improper tensioning or worn pulley grooves. Ensure you use a tension gauge and check that the raw-edge sidewalls are seating properly in the sheave and not "bottoming out" in a worn-out groove.
What are the signs that a Gripnotch belt needs replacement?
Inspect cogs for cracking, glazing on the sidewalls, or excessive "dusting" around the drive. Because EPDM belts do not always show traditional cracking like older neoprene belts, using a belt wear gauge to check rib profile is recommended.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
