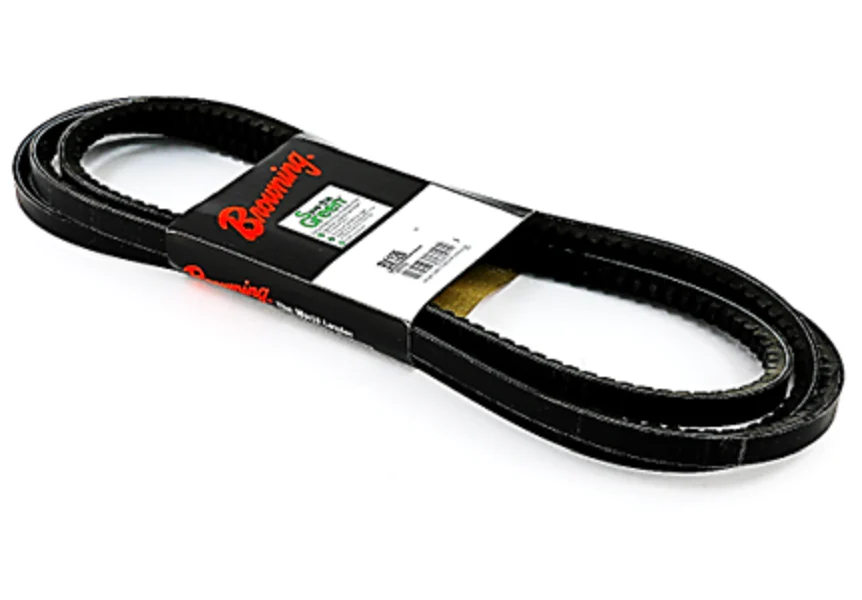

Browning BX126 Belt
The Browning BX126 Belt is a heavy-duty Gripnotch V-Belt engineered for high-torque HVACR and industrial blower applications. Constructed from advanced EPDM rubber, this Type BX cogged belt features a 129-inch outside diameter and a 127.8-inch pitch length. Designed as a superior alternative to standard wrapped belts, the precision-molded cogs increase surface area for rapid heat dissipation and improved power transmission efficiency. The raw-edge sidewalls ensure a consistent pulley grip, minimizing vibration and noise in high-static pressure systems. Utilizing the Code 1 Match belt system, the BX126 meets tighter-than-RMA tolerances, allowing for easy multi-groove drive matching without the need for manual belt sorting. With a wide temperature range of -40°F to 251°F and high-tensile polyester reinforcing cords, this industrial V-belt maintains dimensional stability and resists elongation under heavy loads, making it the standard choice for professional contractors seeking reliable HVAC drive maintenance solutions.
Key Benefits- Maximum Heat Dissipation: Precision-molded cogs allow for cooler operation and extended service life compared to wrapped belts.
- High HP Capacity: Raw-edge construction provides up to 30% more horsepower capacity for compact drive designs.
- Code 1 Matching: Simplifies inventory by ensuring all BX126 belts of the same size meet matching requirements for multi-belt sheaves.
- EPDM Durability: Resists oil, chemicals, and extreme ambient temperatures in rooftop and mechanical room environments.
- Static Conductivity: Engineered to safely dissipate static electricity per ISO1813 standards.
What is the difference between a BX126 and a standard B126 belt?
The BX126 is a cogged (notched) belt, whereas the B126 is a wrapped belt. The BX126 offers higher flexibility for smaller sheave diameters and better heat dissipation, making it more efficient for continuous-duty HVAC motors.
Can I mix Gen II TorqTitan belts with original Browning BX belts?
It is recommended to replace all belts on a multi-groove drive at once. Mixing different generations or series on the same drive can lead to uneven load distribution and premature wear.
When should a BX126 Gripnotch belt be replaced?
Inspect for bottom-of-groove cracking or sidewall glazing. In EPDM belts, look for material loss (cracking is less common than in older neoprene belts). Use a belt wear gauge to check for proper fit in the sheave groove.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
