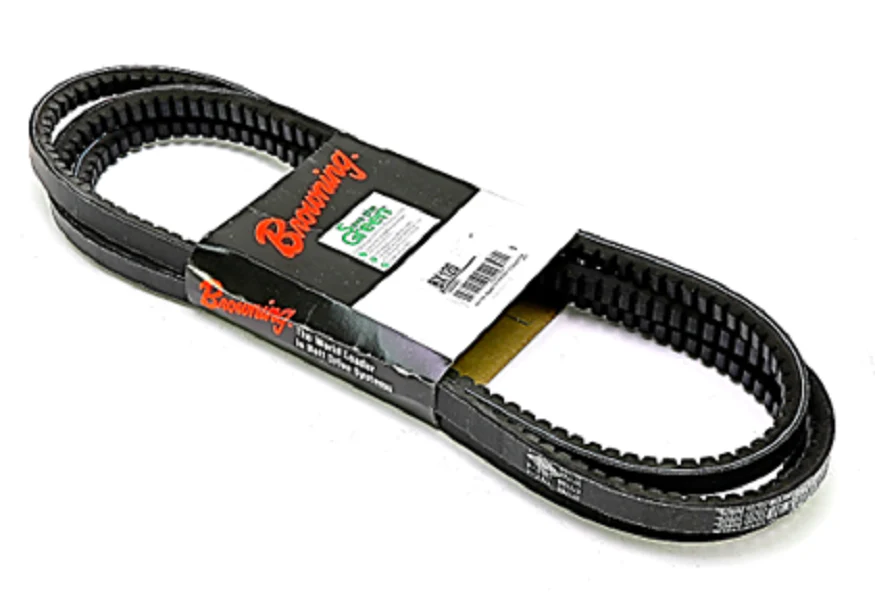

Browning BX120 Belt
The Browning BX120 Belt is a heavy-duty cogged V-belt engineered for demanding HVACR applications requiring high-torque transmission and superior heat dissipation. Featuring a 123-inch outside diameter and a Gripnotch profile, this Type BX belt utilizes a precision-molded notch design that increases flexibility, allowing it to operate efficiently on smaller diameter sheaves while reducing bending stress. The EPDM construction ensures resistance to oil and heat, maintaining dimensional stability under fluctuating thermal loads common in industrial air handlers and cooling tower drives. Designed for increased horsepower ratings compared to standard wrapped belts, the BX120 minimizes slippage and improves energy efficiency by providing more aggressive traction in the pulley grooves. For technicians, this translates to reduced downtime and consistent tensioning across multi-belt drives, ensuring system reliability in critical air-side applications.
- Enhanced Flexibility: Molded notches reduce internal stress and allow for high-speed operation on compact sheave configurations.
- Maximum Torque Transfer: Raw-edged sidewalls provide a higher coefficient of friction for better grip and reduced energy loss.
- EPDM Durability: Provides superior resistance to glazing and environmental degradation in mechanical room environments.
- Matched Performance: Engineered to meet ARPM standards for longitudinal uniformity in matched set applications.
Common Questions
What is the difference between a BX and a B section belt?
The BX designation indicates a "Gripnotch" or cogged construction. While both share the same top width and depth, the BX120 offers higher flexibility and better heat dissipation than a standard wrapped B120, making it more efficient for high-load cycles.
Can the BX120 be used on standard B-groove sheaves?
Yes, the Browning BX120 is fully compatible with standard B-section pulleys. The notched design improves the wrap around the sheave, which can extend the service life of the drive components by reducing heat buildup.
How do I verify the length of a BX120 belt?
The BX120 has a nominal 120-inch pitch length and a 123-inch measured outside diameter. Always verify the manufacturer part number and pitch length to ensure proper center distance adjustment on the motor base.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
