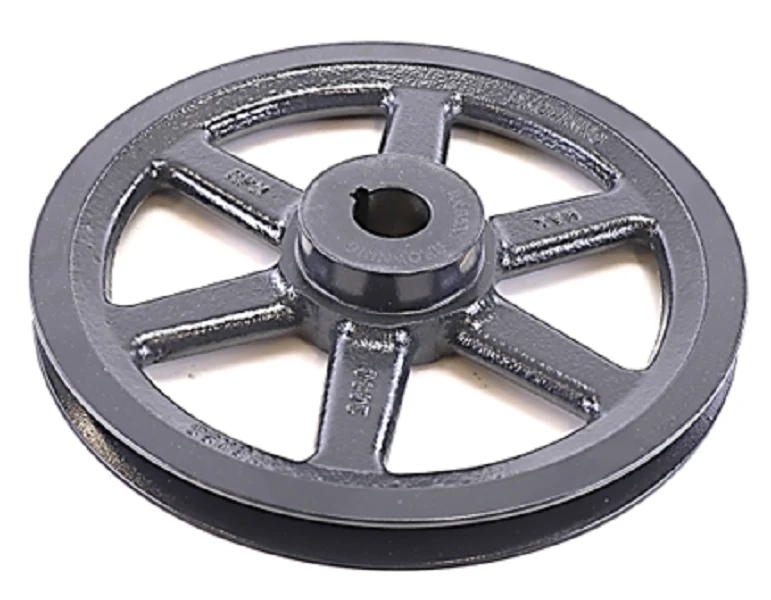

Browning BK95X1 Sheave
The Browning BK95X1 Sheave is a heavy-duty single groove cast iron pulley engineered for reliable power transmission in industrial HVACR systems. Featuring a 9.25" outside diameter and a 1" fixed bore, this component is precision-machined from high-grade ASTM-30 gray cast iron to ensure high tensile strength and minimal vibration under load. This BK cast iron sheave is designed for versatility, utilizing a universal groove profile compatible with 4L, 5L, A, and B belts. The 1-inch bore includes a standard keyway and setscrew for secure shaft mounting, preventing slippage during high-torque startup. For contractors looking for a replacement blower pulley or a durable drive component, the Browning BK95X1 offers superior balance and wear resistance compared to standard stamped steel alternatives. Its 9.0" datum diameter for A-belts and 9.3" pitch diameter for B-belts allow for precise RPM adjustments in commercial air handling units and belt-driven fans.
Key Benefits
- Universal Belt Compatibility: Designed for seamless integration with 4L, 5L, A, and B sectional belts.
- High Grade Cast Iron: Provides superior heat dissipation and dampens harmonic vibrations for quieter operation.
- Precision Machining: Static balancing minimizes bearing wear and extends the service life of the motor shaft.
- Corrosion Resistance: Finished with a durable coating to resist oxidation in high-humidity mechanical rooms.
- Fixed Bore Stability: The 1-inch bore provides a rigid, true-running connection for critical drive assemblies.
Common Questions
What belts can be used with the Browning BK95X1?
This sheave is compatible with A (4L) and B (5L) classical V-belts. It supports a wide range of belt widths to accommodate various horsepower requirements.
Does this sheave require a separate bushing?
No, the BK95X1 features a 1-inch fixed bore. It is ready for direct installation on a 1" shaft without the need for an H-style or QD bushing.
Is this sheave suitable for high-speed fan applications?
Yes, the cast iron construction and precision machining make it ideal for commercial blowers and exhaust fans requiring a 9.25-inch OD drive component.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
