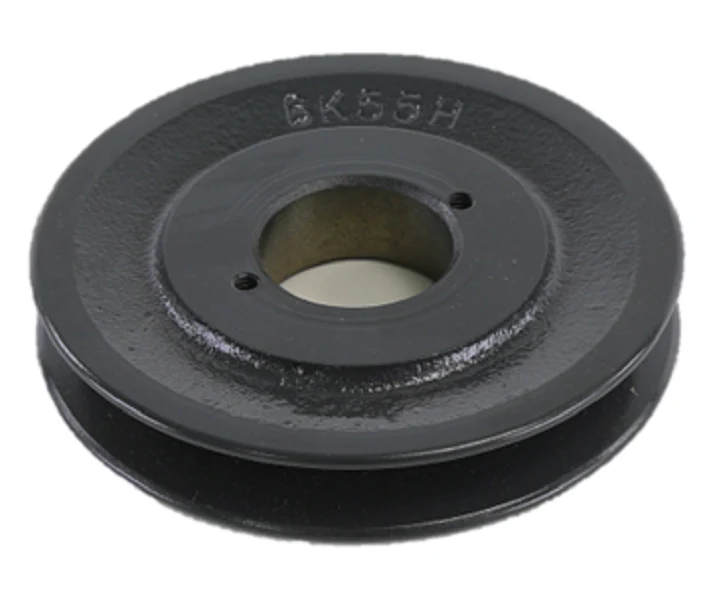

Browning BK55H Sheave
The Browning BK55H Sheave is a precision-engineered single groove cast iron pulley designed for heavy-duty power transmission. With a 5.25" outside diameter and a 5.0" datum diameter for B belts (4.6" for A belts), this sheave provides reliable performance in industrial HVACR systems. It is specifically manufactured for use with H Series split taper bushings, ensuring a secure, concentric fit on the drive shaft that minimizes vibration and extends bearing life. This component is versatile, supporting 4L, 5L, A, and B section belts, making it a standard choice for technicians managing diverse motor applications. Constructed from high-tensile Class 30 cast iron and finished with a gray powder coat, it offers superior wear resistance and thermal stability under high torque loads. For contractors performing v-belt drive maintenance, the BK55H delivers the dimensional accuracy required for precise belt alignment and optimal energy transfer in commercial air handling units.
- Universal Belt Compatibility: Designed to accommodate 4L, 5L, A, and B belts, providing flexibility for various HVAC drive replacements.
- Interchangeable Hub System: Utilizes the H series bushing system, allowing for easy bore size adjustments without replacing the entire sheave.
- Durable Construction: The cast iron V-belt pulley design ensures long-term structural integrity and heat dissipation in demanding environments.
- Static Balancing: Precision machining reduces rotational vibration, protecting the motor and fan bearings from premature wear.
Common Technical Questions
What is the difference between datum diameter and outside diameter for the BK55H?
The 5.25" outside diameter is the physical edge-to-edge measurement. For drive ratio calculations, use the 5.0" datum diameter for B belts or 4.6" for A belts to ensure accurate RPM output.
Can I install this sheave without a bushing?
No, the Browning BK55H is a bushed-style sheave. It requires an H-type split taper bushing, which must be sized to your specific motor or blower shaft diameter for proper installation.
Is this sheave suitable for high-speed blower applications?
Yes, as long as the rim speed does not exceed 6,500 feet per minute. For standard commercial HVAC applications, this industrial belt drive component is rated for reliable continuous duty.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
