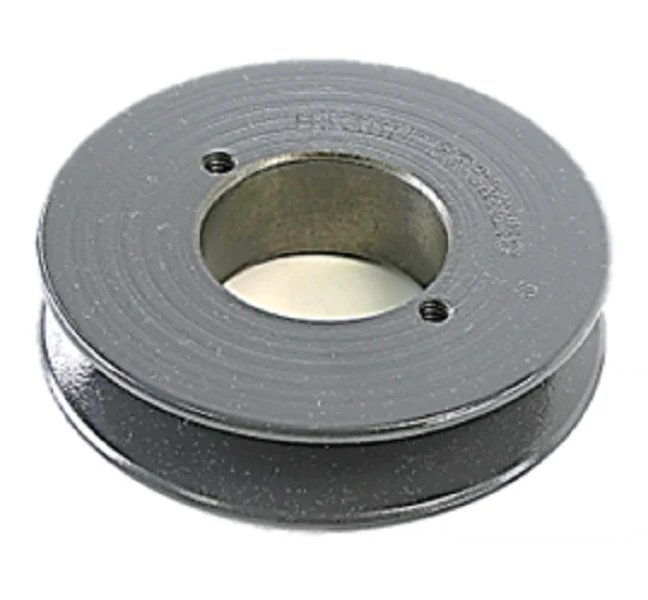

Browning BK36H Sheave
The Browning BK36H Sheave is a precision-machined 3.75" OD single groove pulley engineered for heavy-duty power transmission in HVACR applications. Constructed from high-grade cast iron, this sheave is static balanced to minimize vibration and extend bearing life in high-torque environments. It is designed for use with H Series bushings, allowing for versatile shaft mounting and a secure interference fit. The BK36H sheave provides universal compatibility, accommodating 4L, 5L, A, and B V-belts, making it a reliable choice for fan and blower assemblies. The finished bore sheave design ensures precise alignment, reducing tangential stress on the drive system. Whether you are performing a motor replacement or optimizing a belt drive, this Browning pulleys component delivers the structural integrity required for continuous duty cycles. Ensure proper sheave diameter selection and belt tensioning to maintain peak mechanical efficiency and airflow performance.
Key Benefits for Technicians:- Universal Belt Compatibility: Versatile grooves support A and B series V-belts as well as 4L and 5L belts for reduced inventory requirements.
- Durable Cast Iron Construction: High-tensile strength material resists wear and provides excellent thermal dissipation under load.
- H-Bushing System: Split taper design allows for easy installation and removal even on aged or slightly worn motor shafts.
- Precision Balance: Static balancing prevents harmonic Resonance, protecting blower wheel integrity and motor bearings.
What is the effective pitch diameter for this sheave?
The pitch diameter varies by belt type. For A belts, it is 3.00", and for B belts, it is 3.40". Always calculate your HVAC drive ratio based on the specific belt profile in use.
Which bushing is required for installation?
This sheave requires a Browning H style bushing. The specific bore size of the bushing must match the shaft diameter of your motor or driven component.
Can this be used on high-static pressure blowers?
Yes, the cast iron build and H-series bushing interface provide the necessary grip and rigidity for industrial fan drives and high-static HVAC systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $73.46
-65%$73.46
$25.71Browning BK36H Sheave
The Browning BK36H Sheave is a precision-machined 3.75" OD single groove pulley engineered for heavy-duty power transmission in HVACR applications. Constructed from high-grade cast iron, this sheave is static balanced to minimize vibration and extend bearing life in high-torque environments. It is designed for use with H Series bushings, allowing for versatile shaft mounting and a secure interference fit. The BK36H sheave provides universal compatibility, accommodating 4L, 5L, A, and B V-belts, making it a reliable choice for fan and blower assemblies. The finished bore sheave design ensures precise alignment, reducing tangential stress on the drive system. Whether you are performing a motor replacement or optimizing a belt drive, this Browning pulleys component delivers the structural integrity required for continuous duty cycles. Ensure proper sheave diameter selection and belt tensioning to maintain peak mechanical efficiency and airflow performance.
Key Benefits for Technicians:- Universal Belt Compatibility: Versatile grooves support A and B series V-belts as well as 4L and 5L belts for reduced inventory requirements.
- Durable Cast Iron Construction: High-tensile strength material resists wear and provides excellent thermal dissipation under load.
- H-Bushing System: Split taper design allows for easy installation and removal even on aged or slightly worn motor shafts.
- Precision Balance: Static balancing prevents harmonic Resonance, protecting blower wheel integrity and motor bearings.
What is the effective pitch diameter for this sheave?
The pitch diameter varies by belt type. For A belts, it is 3.00", and for B belts, it is 3.40". Always calculate your HVAC drive ratio based on the specific belt profile in use.
Which bushing is required for installation?
This sheave requires a Browning H style bushing. The specific bore size of the bushing must match the shaft diameter of your motor or driven component.
Can this be used on high-static pressure blowers?
Yes, the cast iron build and H-series bushing interface provide the necessary grip and rigidity for industrial fan drives and high-static HVAC systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
