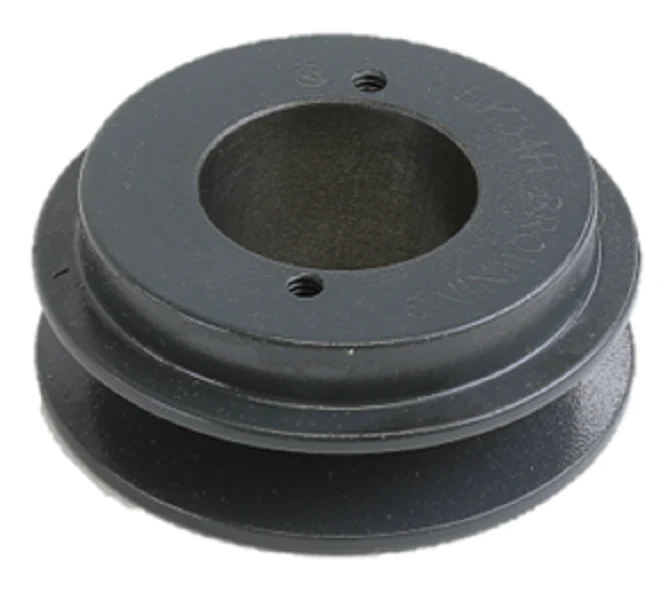

Browning BK34H Sheave
The Browning BK34H Sheave is a precision-machined single groove cast iron pulley engineered for heavy-duty power transmission in HVACR drive systems. Featuring a 3.55" outside diameter, this BK series sheave is designed to interface with H series split taper bushings, ensuring a secure, concentric fit on the shaft that minimizes vibration and axial runout. Its versatile groove profile is compatible with 4L, 5L, A, and B section belts, making it a standard component for adjusting blower speeds or maintaining pump drives. The high-grade cast iron construction provides excellent wear resistance and thermal stability under constant load. When replacing fixed-bore pulleys, the Browning BK34H offers superior serviceability by allowing for easier removal and hub diameter flexibility. This sheave is crucial for contractors maintaining V-belt drive efficiency and ensuring proper static pressure performance in commercial air handling units. Reliable and balanced, it is a staple for professional mechanical drive assemblies.
Key Benefits:
- Interchangeable Bushing Design: Utilizes H-type bushings to accommodate various shaft diameters while maintaining high torque transfer.
- Multi-Belt Compatibility: Transitions seamlessly between A and B series belts or 4L and 5L fractional horsepower belts.
- Durable Cast Iron Build: Engineered for long-term durability in high-cycle industrial motor applications.
- Precision Balancing: Reduces bearing wear and extends the lifespans of both the motor and the driven equipment.
Common Questions:
What is the effective datum diameter for the BK34H?
The datum diameter varies by belt type: it is 3.0" for A belts and 3.4" for B belts, which is critical for calculating precise drive ratios.
Does this include the H bushing?
No, this is the sheave rim only. You must select the appropriate H series split taper bushing based on your specific motor shaft or driven shaft size.
Can this sheave be used in high-heat environments?
Yes, the cast iron metallurgy is suited for standard HVAC mechanical rooms, though belt tension should be monitored as ambient temperatures rise.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $72.89
-65%$72.89
$25.51Browning BK34H Sheave
The Browning BK34H Sheave is a precision-machined single groove cast iron pulley engineered for heavy-duty power transmission in HVACR drive systems. Featuring a 3.55" outside diameter, this BK series sheave is designed to interface with H series split taper bushings, ensuring a secure, concentric fit on the shaft that minimizes vibration and axial runout. Its versatile groove profile is compatible with 4L, 5L, A, and B section belts, making it a standard component for adjusting blower speeds or maintaining pump drives. The high-grade cast iron construction provides excellent wear resistance and thermal stability under constant load. When replacing fixed-bore pulleys, the Browning BK34H offers superior serviceability by allowing for easier removal and hub diameter flexibility. This sheave is crucial for contractors maintaining V-belt drive efficiency and ensuring proper static pressure performance in commercial air handling units. Reliable and balanced, it is a staple for professional mechanical drive assemblies.
Key Benefits:
- Interchangeable Bushing Design: Utilizes H-type bushings to accommodate various shaft diameters while maintaining high torque transfer.
- Multi-Belt Compatibility: Transitions seamlessly between A and B series belts or 4L and 5L fractional horsepower belts.
- Durable Cast Iron Build: Engineered for long-term durability in high-cycle industrial motor applications.
- Precision Balancing: Reduces bearing wear and extends the lifespans of both the motor and the driven equipment.
Common Questions:
What is the effective datum diameter for the BK34H?
The datum diameter varies by belt type: it is 3.0" for A belts and 3.4" for B belts, which is critical for calculating precise drive ratios.
Does this include the H bushing?
No, this is the sheave rim only. You must select the appropriate H series split taper bushing based on your specific motor shaft or driven shaft size.
Can this sheave be used in high-heat environments?
Yes, the cast iron metallurgy is suited for standard HVAC mechanical rooms, though belt tension should be monitored as ambient temperatures rise.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
