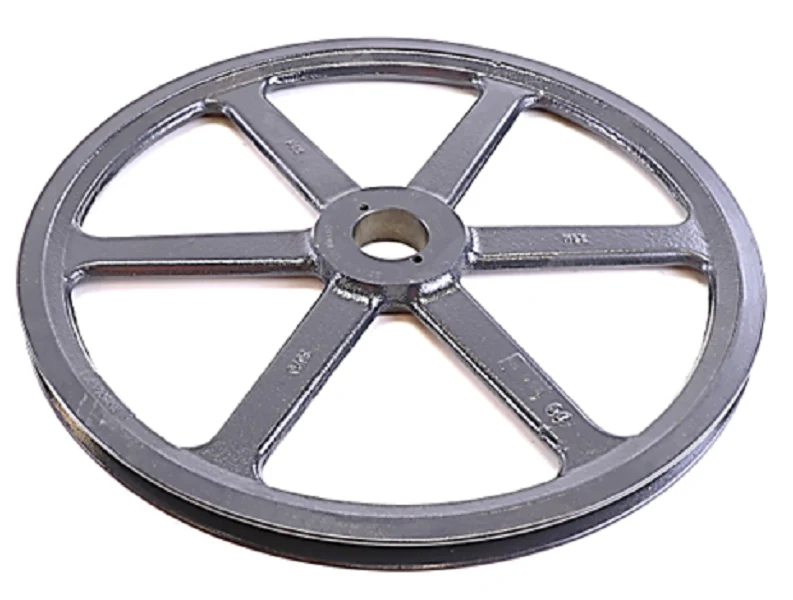

Browning BK160H Sheave
The Browning BK160H Sheave is a precision-engineered cast iron pulley designed for heavy-duty HVACR and industrial blower applications. This single groove sheave features a 15.75-inch outside diameter and is specifically machined to integrate with H series split taper bushings, ensuring a secure, concentric fit on the shaft to minimize vibration. Engineered for versatility, the BK160H is compatible with 4L, 5L, A, and B section V-belts, allowing technicians to fine-tune drive ratios across various motor configurations. The high-grade gray cast iron construction provides excellent wear resistance and thermal dissipation for continuous-duty cycles. By utilizing a bushed bore design, this component allows for easy installation and removal without damaging the drive shaft, making it a reliable choice for maintaining static pressure and airflow in commercial air handling units. Its balanced machining meets rigorous tolerances, reducing mechanical stress on bearings and extending the service life of the entire drive assembly.
Key Benefits- Dual Belt Compatibility: Machined to accept both A and B section belts, providing flexibility for different torque requirements.
- Split Taper Design: Designed for H bushings to provide a 360-degree clamp fit, reducing the risk of keyway wallowing.
- High Static Pressure Performance: Large 15.75" diameter allows for significant speed reduction and increased torque for large blower wheels.
- Durable Cast Iron: Constructed from ASTM A48 Class 30 cast iron for maximum structural integrity and belt grip.
What belts can be used with the Browning BK160H?
This sheave is compatible with 4L and A belts (0.50" top width) as well as 5L and B belts (0.63" top width).
Does this sheave include the H series bushing?
No, the H series bushing is sold separately to match your specific motor or fan shaft diameter.
Is this sheave suitable for high-vibration HVAC applications?
Yes, the cast iron material and bushed mounting system are specifically used to dampen vibration and prevent slipping in air handlers and rooftop units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
