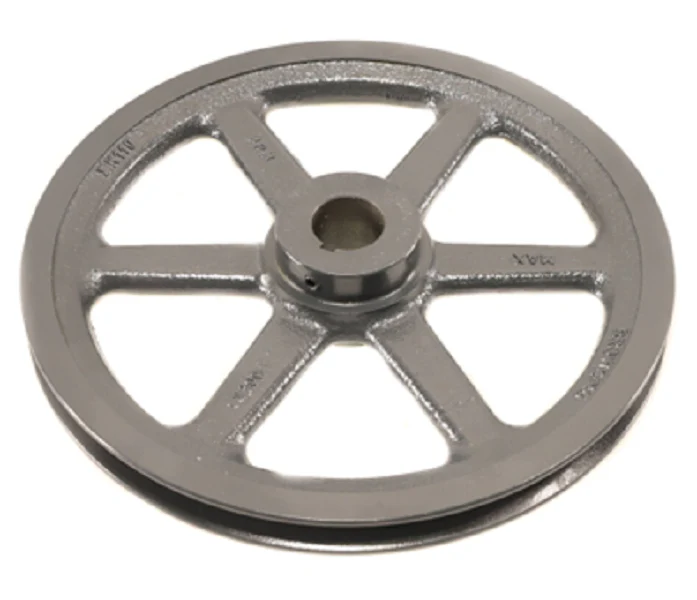

Browning BK110X 1 3/16 Sheave
The Browning BK110X 1 3/16 is a high-grade cast iron sheave engineered for reliable power transmission in heavy-duty HVACR applications. This single-groove pulley features a 10.75" outside diameter and is precision-machined with a 1 3/16" fixed bore, including a standard keyway and setscrew for secure shaft attachment. Designed for versatility, the Browning BK series is compatible with 4L, 5L, A, and B belts, allowing technicians to fine-tune drive ratios across various blower and motor configurations. The ASTM Class 30 cast iron construction provides superior dampening characteristics and wear resistance compared to stamped steel alternatives. Its statically balanced design minimizes vibration, extending the service life of bearings and belts in high-torque environments. Whether you are performing a field replacement or optimizing an industrial belt drive, this sheave ensures consistent pitch diameter maintenance and efficient energy transfer under varying thermal loads.
- Multi-Belt Compatibility: Engineered to accept 4L, A, 5L, and B section V-belts for maximum field flexibility.
- Durable Construction: High-tensile cast iron sheave material ensures longevity and resistance to abrasive wear.
- Precision Bore: The 1 3/16" fixed bore is machined for a tight tolerance fit to reduce shaft galling and run-out.
- Optimized Performance: Large 10.75" OD provides efficient leverage for high-torque mechanical power transmission.
Common Questions
What is the difference between a BK sheave and a standard pulley?
The Browning BK110X utilizes heavy-duty cast iron and is specifically balanced for HVACR motor applications, offering better heat dissipation and belt grip than standard consumer-grade pulleys.
Can I use this sheave with both A and B belts?
Yes, the groove profile is designed to properly seat A belts (4L) and B belts (5L), though the datum diameter will shift slightly depending on the belt cross-section used.
Does this include the setscrew?
Yes, this fixed-bore sheave comes equipped with a standard setscrew over the keyway to ensure the 1 3/16" bore remains locked during high-static pressure startups.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $155.44
-65%$155.44
$54.40Browning BK110X 1 3/16 Sheave
The Browning BK110X 1 3/16 is a high-grade cast iron sheave engineered for reliable power transmission in heavy-duty HVACR applications. This single-groove pulley features a 10.75" outside diameter and is precision-machined with a 1 3/16" fixed bore, including a standard keyway and setscrew for secure shaft attachment. Designed for versatility, the Browning BK series is compatible with 4L, 5L, A, and B belts, allowing technicians to fine-tune drive ratios across various blower and motor configurations. The ASTM Class 30 cast iron construction provides superior dampening characteristics and wear resistance compared to stamped steel alternatives. Its statically balanced design minimizes vibration, extending the service life of bearings and belts in high-torque environments. Whether you are performing a field replacement or optimizing an industrial belt drive, this sheave ensures consistent pitch diameter maintenance and efficient energy transfer under varying thermal loads.
- Multi-Belt Compatibility: Engineered to accept 4L, A, 5L, and B section V-belts for maximum field flexibility.
- Durable Construction: High-tensile cast iron sheave material ensures longevity and resistance to abrasive wear.
- Precision Bore: The 1 3/16" fixed bore is machined for a tight tolerance fit to reduce shaft galling and run-out.
- Optimized Performance: Large 10.75" OD provides efficient leverage for high-torque mechanical power transmission.
Common Questions
What is the difference between a BK sheave and a standard pulley?
The Browning BK110X utilizes heavy-duty cast iron and is specifically balanced for HVACR motor applications, offering better heat dissipation and belt grip than standard consumer-grade pulleys.
Can I use this sheave with both A and B belts?
Yes, the groove profile is designed to properly seat A belts (4L) and B belts (5L), though the datum diameter will shift slightly depending on the belt cross-section used.
Does this include the setscrew?
Yes, this fixed-bore sheave comes equipped with a standard setscrew over the keyway to ensure the 1 3/16" bore remains locked during high-static pressure startups.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
