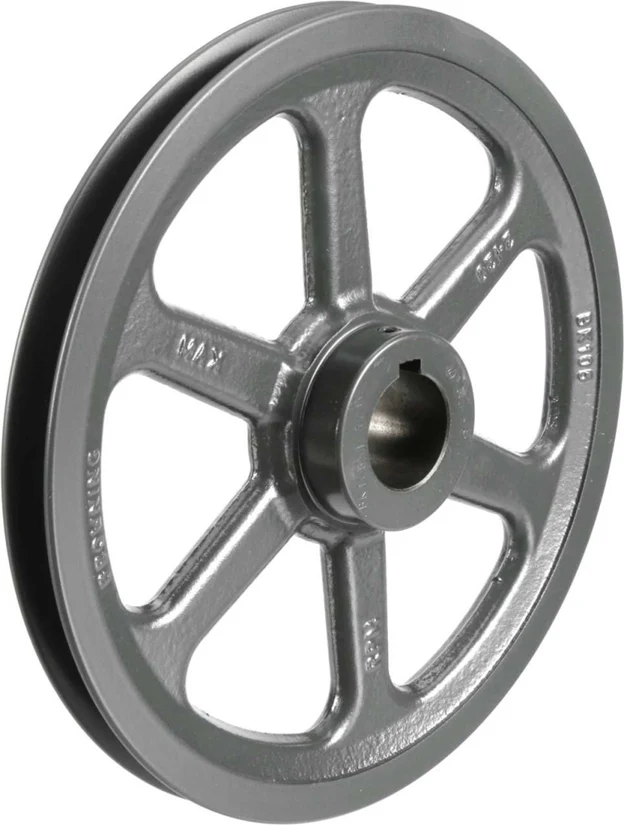

Browning BK105X 1 7/16 Sheave
The Browning BK105X 1 7/16 is a heavy-duty, spoked cast iron V-belt sheave designed for reliable fractional horsepower (FHP) and light-duty industrial drive applications. Featuring a 10.25-inch outside diameter and a 1-7/16-inch finished bore with an integrated keyway and setscrew, this single groove sheave provides a precise, direct-to-shaft fit without the need for additional bushings. Engineered with Browning’s versatile combination groove, it is fully compatible with 4L, 5L, A, and B section belts, allowing for flexible pitch diameter adjustments: 9.7 inches for A-section belts and 10.2 inches for B-section belts. The high-grade cast iron construction is precision-machined and balanced to minimize vibration and reduce wear on blower motors and fan drives. This component is a standard for HVAC technicians requiring consistent fixed bore pulley performance in air handling units or material handling equipment.
- Universal Drive Compatibility: Designed for use with 4L, 5L, A, AX, B, and BX V-belts for maximum shop inventory flexibility.
- Precision Machined Casting: Balanced spoked design reduces rotational mass and bearing stress on 1-7/16" shafts.
- Finished Bore Design: Includes a factory-cut keyway and setscrew for immediate installation and secure torque transmission.
- Optimized Air Handling: The 10.25" OD provides accurate fan speed ratios required for commercial ventilation systems.
Common Questions:
What is the pitch diameter for B-section belts on this sheave?
The Browning BK105X provides a pitch diameter of 10.2 inches when utilizing B or 5L cross-section belts.
Does this sheave require a Browning split taper bushing?
No, this is a fixed bore sheave with a 1-7/16" internal diameter; it is designed to mount directly to the shaft.
Can I use an AX cogged belt with this 1-groove pulley?
Yes, the combination groove design allows the use of AX and BX cogged belts, which can provide higher efficiency and heat dissipation in tight HVAC enclosures.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
