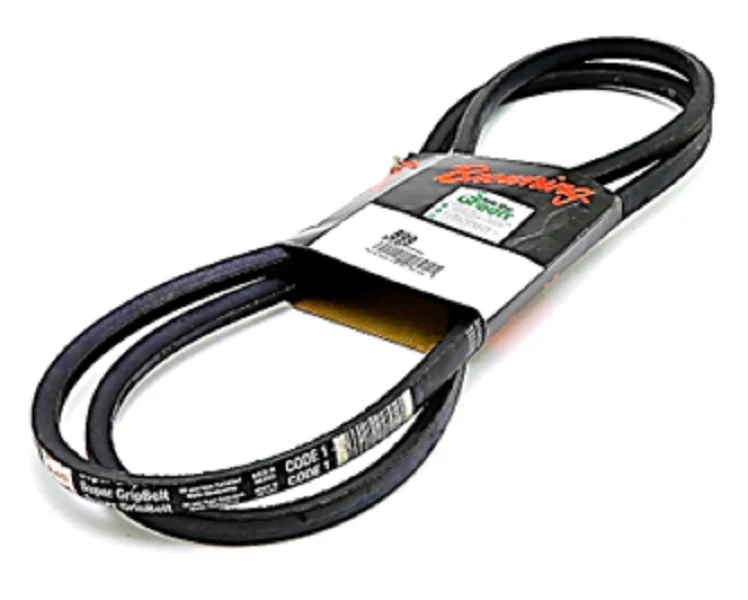

Browning B99 Belt
The Browning B99 Super Gripbelt is a heavy-duty, classical wrapped V-belt engineered for optimal power transmission in commercial and industrial HVACR systems. Built with a B-section profile, this belt features a 21/32" top width and a 102" outside diameter (100.8" pitch length), making it a standard choice for supply fans, exhaust blowers, and air handling units. The wrapped construction utilizes a specialized fabric cover that provides a smooth, quiet operation while remaining more tolerant to sheave misalignment and minor slipping than raw-edge alternatives. Designed by veteran engineers, the high tensile cord reinforcement ensures high flex life and superior resistance to elongation, maintaining consistent static conductivity and performance in temperatures up to 140°F.
Key Benefits
- Code 1 Match system ensures tight length tolerances for multiple-belt drives, providing uniform load distribution without the need for manual matching.
- Constructed from oil and heat resistant neoprene rubber to withstand the harsh environments of rooftop units and mechanical rooms.
- Superior flexibility from the single-fabric design reduces bending stress and internal heat buildup during high-speed operation.
- High horsepower capacity compared to FHP (Light-Duty) 5L belts, offering a significantly longer design life in industrial 1 HP+ motor applications.
Common Questions
Can I substitute a 5L belt for a B99?
While both have a similar 5/8" nominal top width, a 5L light-duty belt cannot handle the horsepower rating of a B99. Substituting a fractional horsepower belt into a B-section drive will lead to immediate failure and potential bearing damage.
Why is my B99 belt squealing on startup?
Squealing typically indicates insufficient tension or worn sheaves. Inspect the pulley grooves for more than 1/32" of wear and re-tension the belt after the initial 15-minute run-in period to account for seating.
Is this belt static conducting?
Yes, all Browning Classical V-belts are designed to be static conducting, which is critical for preventing spark discharge in air handling applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
