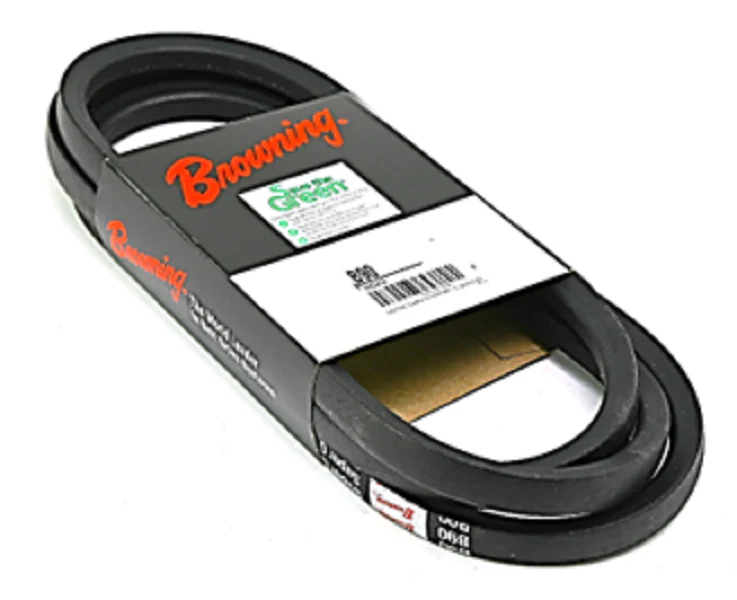

Browning B90 Belt
The Browning B90 Super Gripbelt is a high-performance classical V-belt engineered for heavy-duty industrial and HVAC applications requiring precision power transmission. Built with a wrapped construction, this belt utilizes a single fabric layer that provides superior flexibility and significantly quieter operation compared to raw-edge alternatives. For contractors managing multi-belt drives, the Browning B90 features the proprietary Code 1 Match belt system, ensuring length tolerances that exceed ARPM standards for consistent load sharing across sheaves. Its neoprene wrapped exterior provides essential resistance to oil and chemicals while maintaining static dissipating properties per ARPM IP-3-3. The internal high tensile cord is specially treated to resist elongation and handle high-shock loads, maintaining a 91.8-inch pitch length under continuous operation. Designed for B-section sheaves, this 93-inch outside diameter belt is the veteran choice for reducing vibration and extending the service life of fractional horsepower and industrial drives.
Key Benefits- Code 1 Matching: Eliminates the need for matching numbers by maintaining tolerances tighter than industry standards.
- Enhanced Flexibility: Single fabric wrap design reduces internal stress and allows for smaller pulley diameters without sacrificing durability.
- Transmission Efficiency: High-modulus polyester cords provide 95% efficiency by minimizing stretch and slip.
- Environmental Resistance: Neoprene construction is rated for temperatures ranging from -32°F to +140°F and offers robust protection against ambient oil and heat.
- Smooth Operation: Wrapped edges reduce "belt chirp" and vibration, critical for commercial air handling units.
What is the difference between the B90 pitch length and outside length?
The Browning B90 has a nominal outside length of 93 inches and a pitch length of 91.8 inches. Always verify the pitch length when cross-referencing to ensure proper center distance on your drive.
Can I use a B90 to replace an A-section belt?
No. The B-section belt has a top width of 21/32 inches and a height of 7/16 inches. It will not seat properly in A-section grooves, leading to rapid sidewall wear and efficiency loss.
Why is my B90 belt squealing during startup?
Squealing is typically a sign of under-tension or worn sheave grooves. We recommend checking tension after the initial 24-hour run-in period to account for the natural seating of the belt into the groove.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
