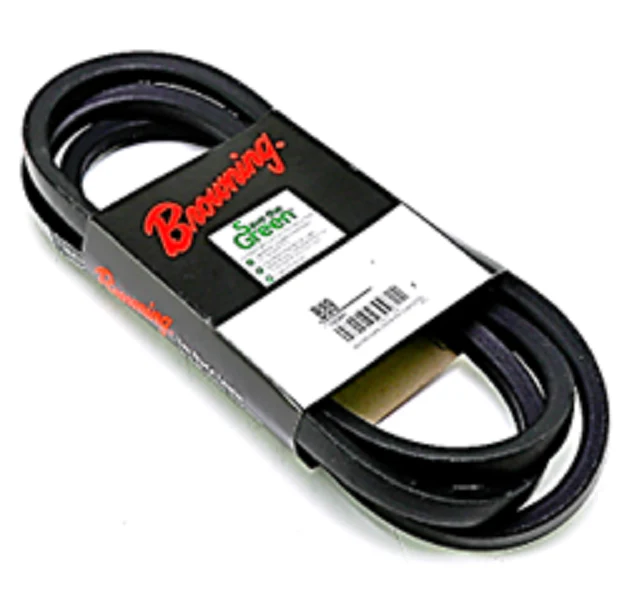

Browning B89 Belt
The Browning B89 is a high-performance classical V-belt engineered for demanding HVACR and industrial applications. This "B" section wrapped belt features a 92-inch outside diameter and a 5/8-inch top width, making it a standard choice for heavy-duty power transmission in commercial air handlers, blowers, and pumps. Built with a neoprene synthetic rubber compound and high-tensile polyester cords, the B89 Super Gripbelt provides superior resistance to oil, heat, and ozone while ensuring stable, low-stretch operation. As a Code 1 match belt, it meets or exceeds ARPM standards for static conductivity and dimensional consistency, allowing for easy assembly of matched sets without the need for complex grouping. This wrapped construction excels in applications where smooth, quiet operation is required, offering higher tolerance for slight misalignment and slipping compared to raw-edge alternatives. For technicians looking to maintain mechanical drive efficiency, the Browning B89 delivers the reliability needed for high-torque systems and continuous-duty cycles.
Key Benefits- Code 1 Matching System: Eliminates the need for traditional match coding, ensuring all B89 belts of the same size meet tight RMA tolerances for uniform load distribution.
- Enhanced Flexibility: The single-fabric wrapped design provides the flexibility required for smaller pulley diameters while maintaining high-strength integrity.
- Environmental Resistance: Formulated with neoprene for reliable performance in oily or high-temperature HVAC environments up to 140°F.
- Static Dissipating: Meets industrial standards for static conductivity, preventing hazardous discharge in sensitive mechanical rooms.
- Reduced Maintenance: High-tensile cords minimize elongation, reducing the frequency of take-up adjustments and preventing startup squeal.
Can I use a 5L section belt in place of this Browning B89?
No. While they share a similar 5/8-inch top width, "B" section belts are designed for significantly higher horsepower capacities and have a deeper profile. Using a fractional horsepower (5L) belt on a drive designed for a B89 will lead to premature failure and reduced torque capacity.
Does this belt require a specific matching number for multi-groove sheaves?
No. Because Browning utilizes the Code 1 matching system for their classical belts, any B89 you purchase is manufactured to such tight tolerances that it can be used with any other B89 to create a matched set.
What are the exact dimensions for the Browning B89?
The Browning B89 has a nominal outside length of 92 inches, a pitch length of 90.8 inches, a top width of 0.66 inches (21/32"), and a thickness of approximately 0.44 inches (13/32").
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $33.87
-65%$33.87
$11.85Browning B89 Belt
The Browning B89 is a high-performance classical V-belt engineered for demanding HVACR and industrial applications. This "B" section wrapped belt features a 92-inch outside diameter and a 5/8-inch top width, making it a standard choice for heavy-duty power transmission in commercial air handlers, blowers, and pumps. Built with a neoprene synthetic rubber compound and high-tensile polyester cords, the B89 Super Gripbelt provides superior resistance to oil, heat, and ozone while ensuring stable, low-stretch operation. As a Code 1 match belt, it meets or exceeds ARPM standards for static conductivity and dimensional consistency, allowing for easy assembly of matched sets without the need for complex grouping. This wrapped construction excels in applications where smooth, quiet operation is required, offering higher tolerance for slight misalignment and slipping compared to raw-edge alternatives. For technicians looking to maintain mechanical drive efficiency, the Browning B89 delivers the reliability needed for high-torque systems and continuous-duty cycles.
Key Benefits- Code 1 Matching System: Eliminates the need for traditional match coding, ensuring all B89 belts of the same size meet tight RMA tolerances for uniform load distribution.
- Enhanced Flexibility: The single-fabric wrapped design provides the flexibility required for smaller pulley diameters while maintaining high-strength integrity.
- Environmental Resistance: Formulated with neoprene for reliable performance in oily or high-temperature HVAC environments up to 140°F.
- Static Dissipating: Meets industrial standards for static conductivity, preventing hazardous discharge in sensitive mechanical rooms.
- Reduced Maintenance: High-tensile cords minimize elongation, reducing the frequency of take-up adjustments and preventing startup squeal.
Can I use a 5L section belt in place of this Browning B89?
No. While they share a similar 5/8-inch top width, "B" section belts are designed for significantly higher horsepower capacities and have a deeper profile. Using a fractional horsepower (5L) belt on a drive designed for a B89 will lead to premature failure and reduced torque capacity.
Does this belt require a specific matching number for multi-groove sheaves?
No. Because Browning utilizes the Code 1 matching system for their classical belts, any B89 you purchase is manufactured to such tight tolerances that it can be used with any other B89 to create a matched set.
What are the exact dimensions for the Browning B89?
The Browning B89 has a nominal outside length of 92 inches, a pitch length of 90.8 inches, a top width of 0.66 inches (21/32"), and a thickness of approximately 0.44 inches (13/32").
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
