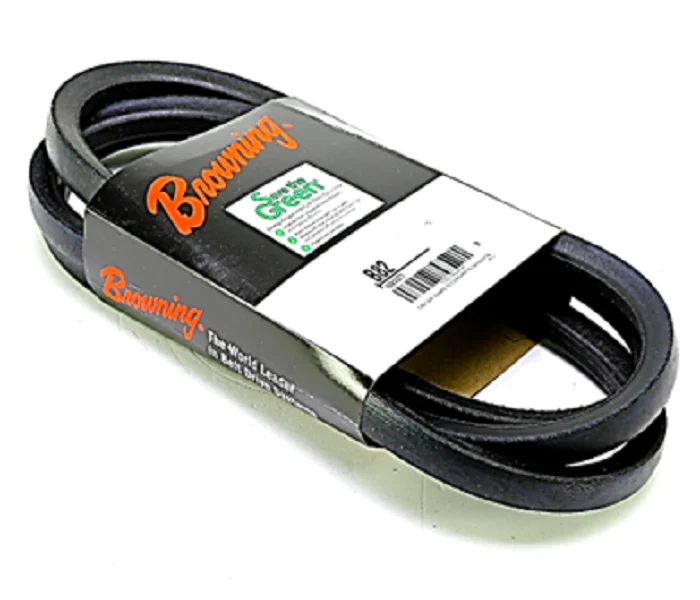

Browning B82 Belt
For high-demand mechanical power transmission, the Browning B82 Belt remains the industry standard for Classical Super Gripbelt performance. This B section v-belt features a 21/32" top width and an 85" nominal outside length, precision-engineered with a wrapped construction to provide smooth, quiet operation in commercial HVAC systems, blowers, and industrial drives. Designed with a synthetic neoprene rubber body, it offers superior resistance to oil and heat while maintaining approximately 95% efficiency. The high-tensile synthetic fiber cords are specially treated to minimize stretching and resist elongation, ensuring that your 83.8" pitch length remains stable under high starting loads. Unlike raw edge belts, this wrapped Super Gripbelt is more tolerant of slight sheave misalignment and slipping, making it a reliable solution for aging equipment. Utilizing the Browning Code 1 match system, these belts meet tolerances significantly tighter than RMA standards, allowing for easy multi-belt drive replacement without the headache of manual matching.
Key Benefits
- Code 1 Match Tolerance: Guarantees uniform load sharing across multiple belt drives, exceeding standard RMA requirements.
- Neoprene Wrapped Construction: Provides a "smooth-quiet" operation and enhanced flexibility for smaller sheave diameters.
- High Tensile Synthetic Cords: Carries heavy horsepower loads with minimal stretch, reducing the need for frequent re-tensioning.
- Extended Material Life: Engineered for oil and heat resistance, maintaining structural integrity up to 140°F.
- Optimized Friction Profile: The 21/32" x 7/16" profile ensures maximum grip and minimal vibration in B-section sheaves.
Common Questions
What is the difference between a B82 and a BX82 belt?
The B82 is a wrapped v-belt designed for smoothness and slip tolerance, whereas the BX82 is a cogged (notched) belt designed for better heat dissipation and higher efficiency on very small pulleys. They share the same top width and length, but the B82 is often preferred for quieter operation and cost-effectiveness in standard residential and commercial blowers.
How do I ensure the correct tension for this belt?
Optimal tension is the lowest point at which the belt does not slip under peak starting loads. Use a Browning belt tension checker to measure deflection based on the center distance of your sheaves, as over-tightening can cause premature bearing failure in the motor or fan.
Can I replace a single belt in a multiple-belt drive?
It is standard practice to replace all belts in a set simultaneously. Mixing old, stretched belts with a new Browning B82 causes the new belt to carry the entire load, leading to rapid failure and uneven sheave wear.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
