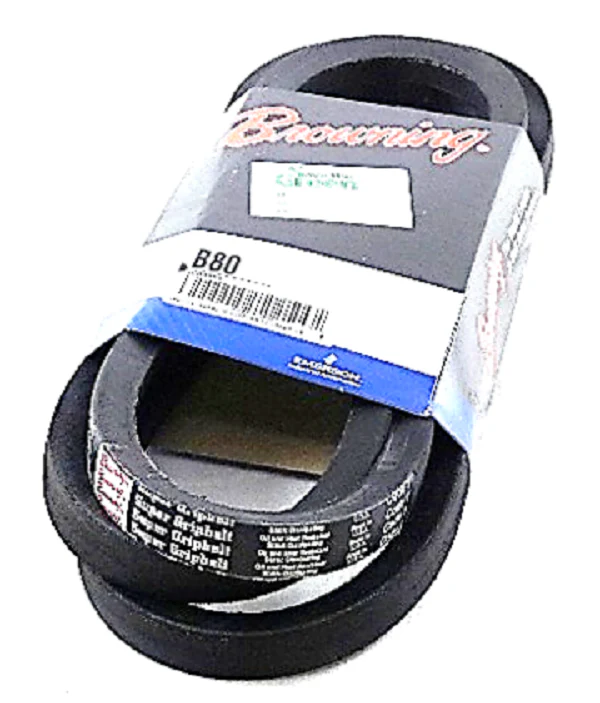

Browning B80 Belt
The Browning B80 Belt is a heavy-duty B section v-belt engineered for demanding HVACR and industrial drive applications. Featuring a 21/32" top width and a 7/16" thickness, this 83" outside diameter classic wrapped belt is constructed with a neoprene rubber body and high-tensile synthetic fiber cords. The single-fabric wrapped design provides superior flexibility and a higher tolerance for slipping or minor pulley misalignment compared to raw-edge alternatives. Designed to meet RMA and MPTA IP-20 standards, the B80 utilizes the Code 1 Match belt system, ensuring consistent length tolerances for multiple-belt sets. This static conductive and oil-resistant belt maintains an efficiency rating of 95% in environments with operating temperatures up to 140°F, making it a reliable solution for high-speed centrifugal pumps, air handlers, and compressor drives requiring consistent power transmission and low-vibration performance.
- Code 1 Matching: Provides precise length uniformity for matched sets, eliminating the need for specific match numbers on multi-groove sheaves.
- Wrapped Construction: The protective fabric cover increases resistance to heat, ozone, and oil while allowing for smoother clutching and quieter operation.
- High-Tensile Cords: Specially treated synthetic members resist elongation and fatigue, maintaining proper tension over extended service cycles.
- RMA Standard Compliance: Engineered to specific cross-section dimensions (B/5L) for dropped-in compatibility with existing industrial pulleys.
Common Questions
What is the difference between the B80 pitch length and outside length?
The Browning B80 has a nominal outside length of 83 inches, while its calculated 81.8-inch pitch length is the standard measurement used for calculating drive ratios and center distances.
Can this belt be used in oily or high-heat environments?
Yes, the neoprene compound is specifically formulated for heat and oil resistance, though it is recommended for ambient temperatures not exceeding 140°F (60°C) to prevent premature rubber degradation.
How do I ensure this belt fits my current drive?
Verify your pulley groove is a B-section (approximately 5/8" to 21/32" wide). If replacing a worn belt where the markings are illegible, measure the outside circumference; a measurement of 83 inches confirms the B80 size.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $28.83
-65%$28.83
$10.09Browning B80 Belt
The Browning B80 Belt is a heavy-duty B section v-belt engineered for demanding HVACR and industrial drive applications. Featuring a 21/32" top width and a 7/16" thickness, this 83" outside diameter classic wrapped belt is constructed with a neoprene rubber body and high-tensile synthetic fiber cords. The single-fabric wrapped design provides superior flexibility and a higher tolerance for slipping or minor pulley misalignment compared to raw-edge alternatives. Designed to meet RMA and MPTA IP-20 standards, the B80 utilizes the Code 1 Match belt system, ensuring consistent length tolerances for multiple-belt sets. This static conductive and oil-resistant belt maintains an efficiency rating of 95% in environments with operating temperatures up to 140°F, making it a reliable solution for high-speed centrifugal pumps, air handlers, and compressor drives requiring consistent power transmission and low-vibration performance.
- Code 1 Matching: Provides precise length uniformity for matched sets, eliminating the need for specific match numbers on multi-groove sheaves.
- Wrapped Construction: The protective fabric cover increases resistance to heat, ozone, and oil while allowing for smoother clutching and quieter operation.
- High-Tensile Cords: Specially treated synthetic members resist elongation and fatigue, maintaining proper tension over extended service cycles.
- RMA Standard Compliance: Engineered to specific cross-section dimensions (B/5L) for dropped-in compatibility with existing industrial pulleys.
Common Questions
What is the difference between the B80 pitch length and outside length?
The Browning B80 has a nominal outside length of 83 inches, while its calculated 81.8-inch pitch length is the standard measurement used for calculating drive ratios and center distances.
Can this belt be used in oily or high-heat environments?
Yes, the neoprene compound is specifically formulated for heat and oil resistance, though it is recommended for ambient temperatures not exceeding 140°F (60°C) to prevent premature rubber degradation.
How do I ensure this belt fits my current drive?
Verify your pulley groove is a B-section (approximately 5/8" to 21/32" wide). If replacing a worn belt where the markings are illegible, measure the outside circumference; a measurement of 83 inches confirms the B80 size.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
