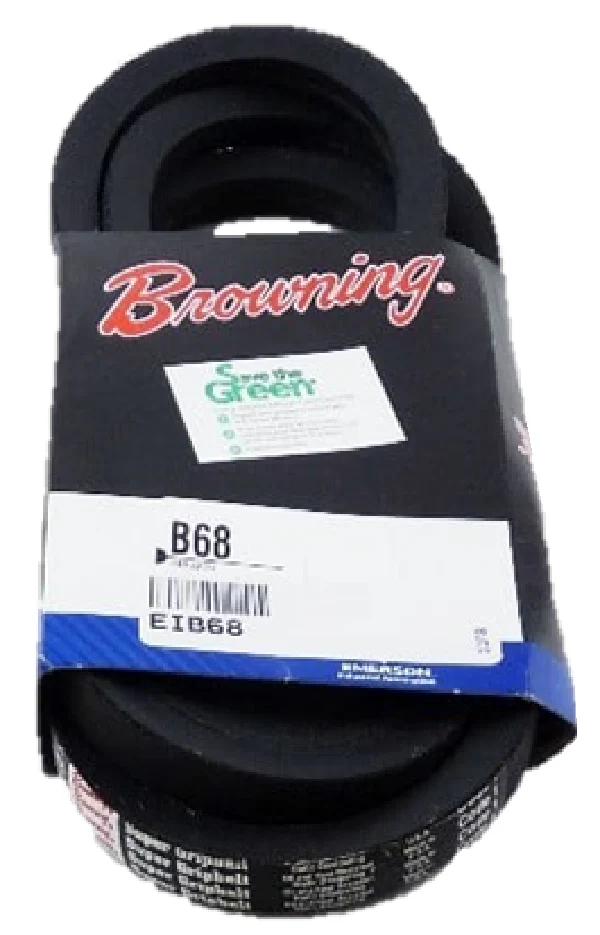

Browning B68 Belt
The Browning B68 Super Gripbelt is a heavy-duty, classical section V-belt designed for high-demand HVACR applications, including air handlers, pump drives, and industrial conveyors. This B-section V-belt features a 21/32-inch top width and 7/16-inch thickness, with a 71-inch nominal outside length and a 69.8-inch pitch length. Built with a wrapped construction, the B68 belt utilizes a specialized single-fabric cover that provides a smooth, quiet clutching action while remaining significantly more tolerant of pulley misalignment and momentary slippage than raw-edge alternatives. The internal structure is reinforced with specially treated high-tensile synthetic fiber cords, which carry heavy horsepower loads and resist elongation to maintain proper tension over extended service intervals.
For contractors managing multi-belt drives, this unit utilizes the Browning Code 1 Match system, ensuring every B68 belt meets tighter-than-RMA standards for uniform length and load distribution. The neoprene synthetic rubber compound is engineered for oil and heat resistance, capable of reliable performance in ambient temperatures up to 140°F. Integrating static-conducting properties, the Browning Super Gripbelt is a standard-setting component for maintaining drive efficiency and reducing vibration in critical ventilation and refrigeration systems.
Key Benefits- Code 1 Matching: Eliminates the need for specific match numbers, allowing any B68 to be used in a matched set for balanced load sharing.
- Enhanced Flexibility: The wrapped, single-fabric design increases flex life and reduces heat buildup during rapid cycling.
- Misalignment Tolerance: More forgiving than raw-edge belts, reducing the risk of premature cord failure due to slight mounting inaccuracies.
- Vibration Dampening: Ground-form edges and uniform construction reduce drive chatter, protecting sensitive motor bearings.
- Heavy-Duty Strength: Rated for higher horsepower capacity in compact, short-center drives compared to standard FHP belts.
Can a B68 belt be used in place of a 5L belt?
While both have a 5/8-inch nominal width, the Browning B68 is a heavy-duty classical belt designed for a 25,000-hour service life, whereas 5L belts are light-duty (FHP) and typically rated for only 10,000 hours with much lower horsepower capacity.
Why is my new B68 belt squealing on startup?
Squealing typically indicates insufficient tension or worn sheaves. Ensure the belt is tensioned to 1/64-inch deflection per inch of span and check that sheave grooves are not worn beyond 1/32-inch.
Is it necessary to replace all belts in a multi-groove drive at once?
Yes. Mixing new and used belts, or different brands, causes uneven load distribution because older belts have already undergone "run-in" stretch. Always install a complete set of Browning machine-matched belts for optimal performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
