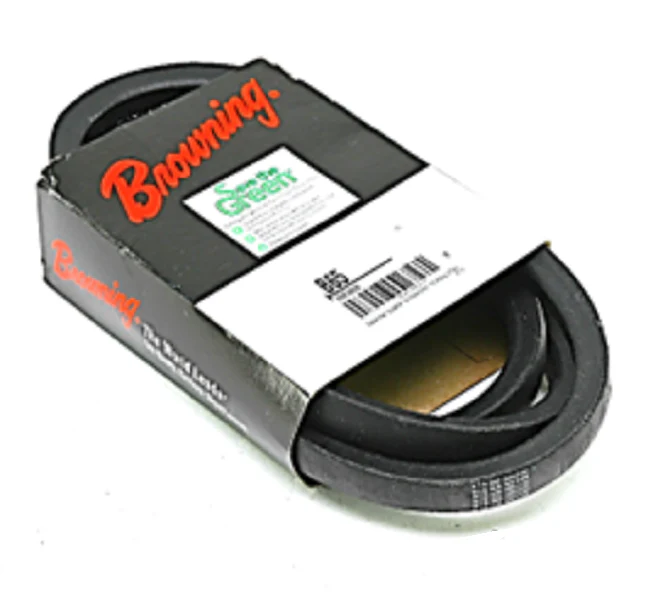

Browning B65 Belt
The Browning B65 Super Gripbelt is a heavy-duty wrapped V-belt designed for the rigorous demands of industrial HVACR systems. Built with a B-Section profile, this belt features an outside diameter of 68 inches and a top width of 21/32 inches, making it a drop-in replacement for standard 5L680 belt sizes in pumps, air handlers, and cooling tower fans. High-performance neoprene rubber construction integrated with high-tensile synthetic fiber cords provides excellent resistance to heat and oil while minimizing elongation under high starting loads.
For contractors managing multi-belt drives, the Code 1 Match system ensures that every B65 belt meets RMA matching standards, allowing for uniform load distribution and vibration reduction without the need for manual belt grouping. The wrapped cover design acts as a mechanical fuse, protecting the motor and sheaves during sudden overloads, while offering 95% efficiency in power transmission. Whether you are servicing a rooftop unit or a commercial exhaust system, this industrial V-belt provides the stability and cross-reference compatibility (Gates, Dayco, Bando) required for professional-grade reliability.
Key Benefits- Code 1 Match System: Guarantees precision length tolerances for seamless load sharing in multiple-belt sets.
- Enhanced Flexibility: The single-fabric wrapped design allows for better tolerance of slight misalignment compared to raw-edge alternatives.
- Durable Construction: High-tensile cords specially treated to resist stretching and provide long-lasting flex life in high-ambient temperatures.
- Universal Compatibility: Standard B Section dimensions (21/32" x 13/32") fit a wide range of Browning, Woods, and Martin sheaves.
Is the B65 compatible with 5L680 sheaves?
Yes, while the B65 is an industrial-grade B-section belt, it effectively cross-references with more lightweight 5L680 FHP belts, provided the sheave groove is designed for a 21/32" top width.
Why is my belt squealing during motor startup?
Startup noise usually indicates insufficient tension or worn sheave grooves. Ensure you use a tension gauge to verify the deflection force, as wrapped belts require a brief run-in period before final adjustment.
Can I mix a new B65 with older belts on the same drive?
It is not recommended. Mixing new and used belts causes the new belt to carry the majority of the load, leading to rapid wear and potential cord failure. Always replace the entire set using Code 1 matched belts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
