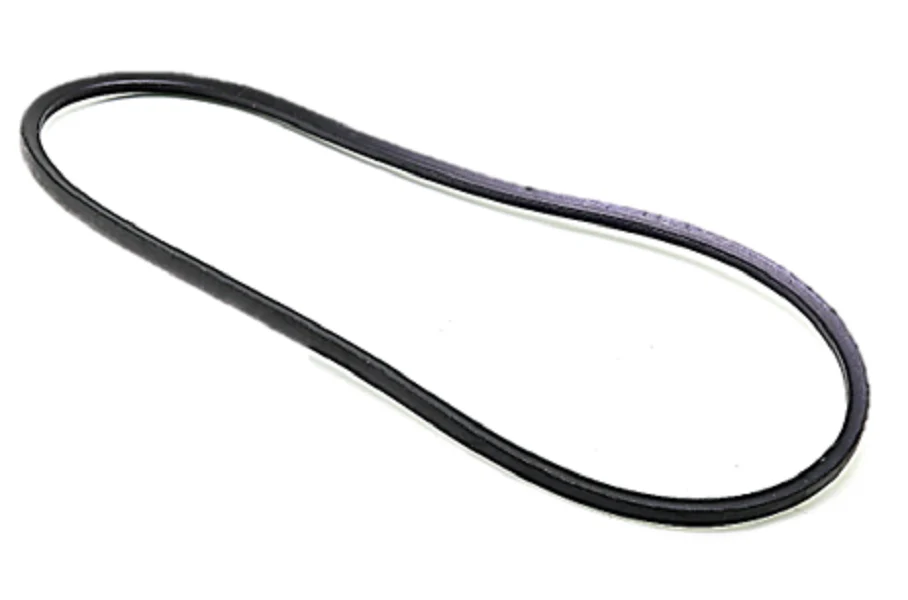

Browning B55 Belt
For industrial-grade power transmission, the Browning B55 stands as a standard-setting B Section Classical V-Belt designed for reliability in demanding HVACR and agricultural applications. This Super Gripbelt features a 58-inch nominal outside length and a 21/32-inch top width, engineered with a wrapped construction that provides smooth, quiet operation while maintaining the flexibility required for smaller sheave diameters. Utilizing high-tensile synthetic fiber cords, the B55 resists elongation and withstands the mechanical stresses of high-speed FHP drives. Its neoprene rubber compound is specifically formulated for heat and oil resistance, ensuring the belt remains static conductive and performs according to RMA safety standards even in harsh environments.
The Browning B55 Belt incorporates the proprietary Code 1 Match system, which guarantees that any two belts of the same size will match within tolerances tighter than industry standards, simplifying the replacement of multi-belt sets. Whether you are servicing a rooftop air handler or a specialized industrial blower, the B55 V-belt offers a superior 58 inch outside diameter profile that tolerates minor pulley misalignment better than raw-edge alternatives. By choosing a Browning wrapped V-belt, contractors ensure reduced downtime and optimal torque transfer across the entire drive system.
Key Benefits:
- Code 1 Matching: Ensures uniform load distribution across multi-belt drives, eliminating the need for specific matching numbers.
- Superior Flexibility: The single-fabric wrapped design allows for higher flex life and better performance on smaller pulleys.
- Environmental Durability: Constructed with oil and heat-resistant neoprene to prevent premature cracking and glazing in high-temperature mechanical rooms.
- Static Conductivity: Meets RMA standards for safety in potentially volatile industrial environments.
- Misalignment Tolerance: Wrapped construction is more forgiving of slight sheave offsets compared to notched belts.
Common Questions:
What is the difference between the Browning B55 and a notched BX55 belt?
While both share the same 58-inch outside length, the B55 features a wrapped cover for smoother operation and better slippage tolerance, whereas the BX55 is a raw-edge notched belt designed for even smaller pulleys and slightly higher heat dissipation. For most standard HVAC sheaves, the B55 is preferred for its quiet performance.
How do I know if my B55 belt is tensioned correctly?
Proper tensioning is critical for the B55. A belt that is too loose will cause friction-induced heat, leading to "spin burns" or glazing. A belt that is too tight increases the load on your motor bearings. We recommend using a tension gauge to meet the specific static tension requirements for a B-section belt.
Can I replace just one belt in a dual-groove sheave set?
It is standard practice to replace all belts in a set simultaneously. Even with Browning’s Code 1 Matching, an old belt will have already experienced some elongation. Mixing old and new belts leads to uneven loading, which can cause the new belt to fail prematurely.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
