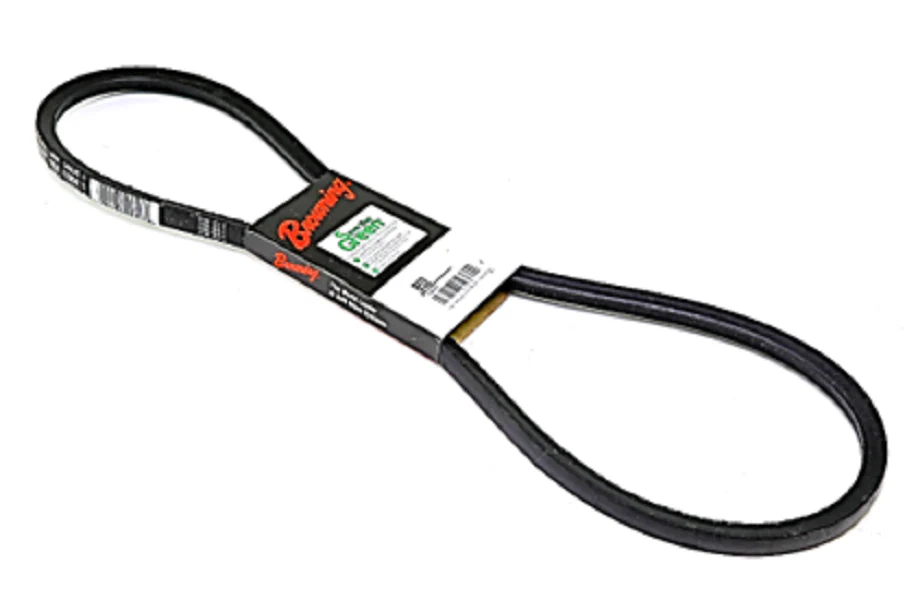

Browning B52 Belt
The Browning B52 Belt is a heavy-duty, 1-strand Classical Super Gripbelt engineered for critical power transmission in industrial and HVACR systems. As a veteran-grade type B V-belt, this component features a 21/32" top width and a 55" nominal outside length (53.8" pitch length), making it a standard specification for larger fan, blower, and compressor drives. Built with a wrapped construction, the Browning B52 utilizes a unique single-fabric design that enhances flexibility for use with smaller sheaves while significantly reducing vibration. The neoprene-wrapped synthetic rubber compound provides essential resistance to heat, oil, and ozone, while the high-tensile synthetic fiber cords minimize elongation under heavy torque loads. Utilizing the proprietary "Code 1" match belt system, this belt meets or exceeds RMA and MPTA IP-20 standards, ensuring matching tolerances for multi-belt drive configurations. This reliable industrial V-belt replacement is designed to tolerate higher levels of misalignment and slippage than raw-edge alternatives, ensuring stable performance in demanding mechanical environments.
- Optimized Power Transfer: High-tensile cords distribute load evenly across the B-section profile to maximize horsepower transmission in short-center drives.
- Quiet Operation: The wrapped construction and single-fabric outer layer reduce friction noise and operational vibration in air handling units.
- Precision Matching: The Code 1 system guarantees that every B52 belt within a set falls within tighter-than-standard tolerances for balanced drive systems.
- Hardware Versatility: Improved flexibility allows the belt to wrap around smaller diameter sheaves without cracking or internal cord fatigue.
- Environmentally Resilient: Synthetic neoprene material protects against oil contamination and standard thermal degradation in tight engine compartments.
Common Questions Regarding the Browning B52
What is the difference between a Browning B52 and a BX52?
The B52 is a wrapped, smooth classical V-belt, whereas the BX52 is a cogged (notched) belt. The wrapped B52 is more tolerant of slippage and misalignment, while the BX52 is typically preferred for higher heat dissipation and even smaller pulley diameters.
Can the Browning B52 be used in a matched set?
Yes. Because this belt carries the Browning Code 1 designation, you can select any number of B52 belts from stock and they will remain within the required tolerances to work together as a matched set without needing specific match numbers.
Is the 55" measurement the internal or external length?
The 55" specification refers to the nominal outside length. For installation and tensioning calculations, the pitch length is approximately 53.8 inches.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
