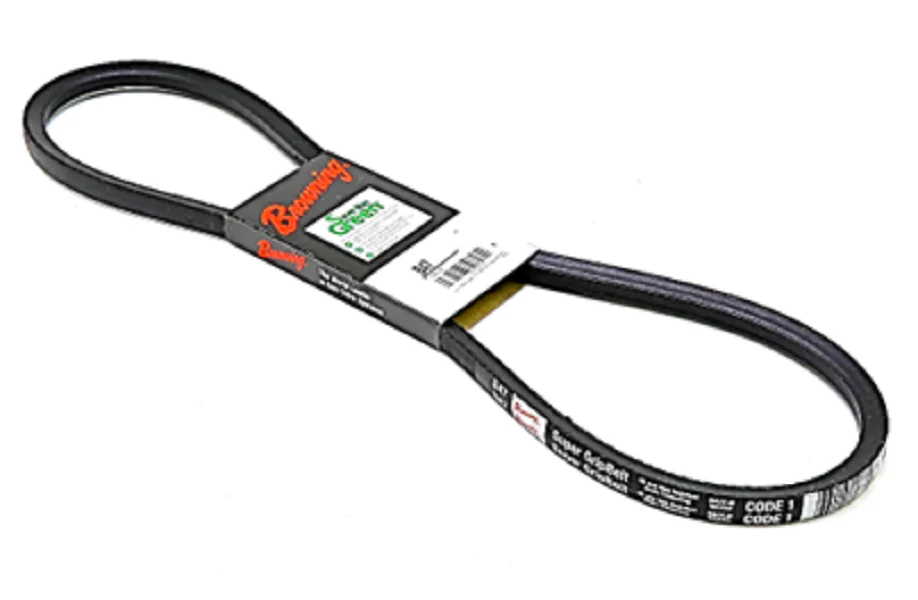

Browning B47 Belt
The Browning B47 Belt is a heavy-duty Classical Super Gripbelt designed for high-performance HVAC drive systems and industrial power transmission. Built with a Type B cross-section, this neoprene wrapped belt features a 50-inch outside diameter and a 48.8-inch pitch length, providing a precise fit for standard sheaves. As a veteran-grade industrial V-belt, the B47 utilizes high-tensile synthetic fiber cords that are specially treated to resist elongation and handle the high-torque demands of commercial air handlers and centrifugal pumps. The wrapped construction and single-fabric design allow for maximum flexibility and quiet operation, making it more tolerant to slight sheave misalignment than raw-edge alternatives. For contractors managing multiple-groove drives, these belts follow the Browning Code 1 match system, exceeding RMA standards for length consistency to ensure even load distribution across all strands. This static-conducting belt is heat and oil resistant, maintaining reliable power transmission in ambient temperatures up to 140°F.
Key Benefits- Code 1 Matching: Precision manufacturing ensures that any B47 belt can be matched with another of the same size without the need for specific match numbers.
- Enhanced Flexibility: The wrapped cover and synthetic rubber core reduce internal heat buildup, extending the service life of V-belt drives.
- Slip Resistance: Engineered for Super Gripbelt performance, providing higher traction and reduced vibration in high-speed industrial machinery.
- Standard Compliance: Fully meets MPTA IP-20 and RMA specifications for static conductivity and dimensional accuracy.
Can I use a 5L belt as a substitute for the Browning B47?
No. While they share a similar top width, a B section belt like the B47 has a significantly higher horsepower rating and longer design life compared to FHP (Fractional Horsepower) 5L belts.
Why is my B47 belt squealing during start-up?
Squealing typically indicates insufficient belt tension. New wrapped V-belts should be checked and re-tensioned after the initial 24-hour run-in period to account for seating in the sheave grooves.
Do I need to replace all belts in a matched set if only one B47 fails?
Yes. To maintain proper HVAC system efficiency and prevent premature failure, you must replace the entire set. Mixing old and new belts causes the newer, shorter belts to carry the entire load.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $19.77
-65%$19.77
$6.92Browning B47 Belt
The Browning B47 Belt is a heavy-duty Classical Super Gripbelt designed for high-performance HVAC drive systems and industrial power transmission. Built with a Type B cross-section, this neoprene wrapped belt features a 50-inch outside diameter and a 48.8-inch pitch length, providing a precise fit for standard sheaves. As a veteran-grade industrial V-belt, the B47 utilizes high-tensile synthetic fiber cords that are specially treated to resist elongation and handle the high-torque demands of commercial air handlers and centrifugal pumps. The wrapped construction and single-fabric design allow for maximum flexibility and quiet operation, making it more tolerant to slight sheave misalignment than raw-edge alternatives. For contractors managing multiple-groove drives, these belts follow the Browning Code 1 match system, exceeding RMA standards for length consistency to ensure even load distribution across all strands. This static-conducting belt is heat and oil resistant, maintaining reliable power transmission in ambient temperatures up to 140°F.
Key Benefits- Code 1 Matching: Precision manufacturing ensures that any B47 belt can be matched with another of the same size without the need for specific match numbers.
- Enhanced Flexibility: The wrapped cover and synthetic rubber core reduce internal heat buildup, extending the service life of V-belt drives.
- Slip Resistance: Engineered for Super Gripbelt performance, providing higher traction and reduced vibration in high-speed industrial machinery.
- Standard Compliance: Fully meets MPTA IP-20 and RMA specifications for static conductivity and dimensional accuracy.
Can I use a 5L belt as a substitute for the Browning B47?
No. While they share a similar top width, a B section belt like the B47 has a significantly higher horsepower rating and longer design life compared to FHP (Fractional Horsepower) 5L belts.
Why is my B47 belt squealing during start-up?
Squealing typically indicates insufficient belt tension. New wrapped V-belts should be checked and re-tensioned after the initial 24-hour run-in period to account for seating in the sheave grooves.
Do I need to replace all belts in a matched set if only one B47 fails?
Yes. To maintain proper HVAC system efficiency and prevent premature failure, you must replace the entire set. Mixing old and new belts causes the newer, shorter belts to carry the entire load.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
