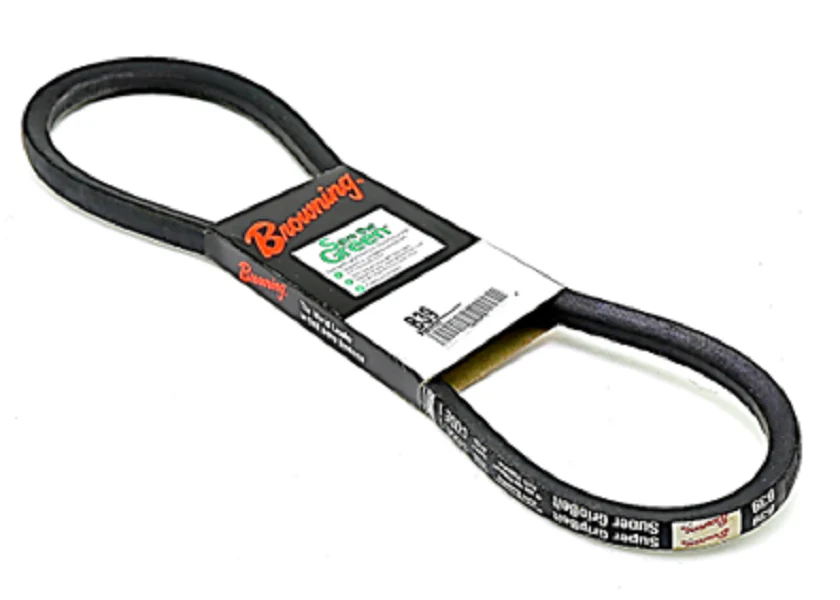

Browning B39 Belt
The Browning B39 Gripbelt is a heavy-duty Type B Super Grip Belt engineered for high-torque power transmission in demanding HVACR and industrial environments. Featuring a 42" outside diameter and a 21/32" top width, this classical V-belt is constructed with a neoprene-wrapped single fabric design that reduces vibration and increases flexibility for use with smaller sheaves. Unlike standard FHP belts, the B39 belt is part of the Browning Code 1 matching system, ensuring tighter length tolerances than RMA standards for balanced load distribution in multiple-belt drives. The high-tensile synthetic fiber cords are specially treated to resist elongation, providing stability under heavy bending stress in air handlers, pumps, and cooling towers. Its wrapped construction improves traction and offers essential resistance to heat, oil, and static conductivity, making it a reliable choice for the rigors of commercial mechanical systems.
Key Benefits
- Code 1 Matching: Ensures consistent length and uniform load sharing across multi-groove sheaves to prevent individual belt overload.
- Superior Traction: The Super Gripbelt design maximizes friction against the B belt section grooves for efficient power transfer without excessive slippage.
- Enhanced Durability: Neoprene-wrapped cover protects the internal tensile cords from oil contamination and high-temperature degradation.
- Drive Reliability: Wrapped edges are more tolerant of slight misalignment than raw-edge alternatives, reducing the risk of sudden mechanical failure.
Common Questions
Can I use a 5L420 belt instead of this B39?
While both share a similar top width, a 5L series belt has significantly lower horsepower capacity. In commercial HVACR applications, always use the Browning B39 to ensure the drive can handle the motor load.
Is the B39 belt static conducting?
Yes, these wrapped belts meet RMA standards for static conductivity and are oil and heat resistant, making them suitable for sensitive industrial environments.
Do I need to replace all belts in a set if only one B39 fails?
Yes. In a multi-belt system, installing one new belt with worn ones causes an uneven load distribution. Replacing the entire set ensures optimal performance and prevents premature wear on the new B39 belt.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $17.42
-65%$17.42
$6.10Browning B39 Belt
The Browning B39 Gripbelt is a heavy-duty Type B Super Grip Belt engineered for high-torque power transmission in demanding HVACR and industrial environments. Featuring a 42" outside diameter and a 21/32" top width, this classical V-belt is constructed with a neoprene-wrapped single fabric design that reduces vibration and increases flexibility for use with smaller sheaves. Unlike standard FHP belts, the B39 belt is part of the Browning Code 1 matching system, ensuring tighter length tolerances than RMA standards for balanced load distribution in multiple-belt drives. The high-tensile synthetic fiber cords are specially treated to resist elongation, providing stability under heavy bending stress in air handlers, pumps, and cooling towers. Its wrapped construction improves traction and offers essential resistance to heat, oil, and static conductivity, making it a reliable choice for the rigors of commercial mechanical systems.
Key Benefits
- Code 1 Matching: Ensures consistent length and uniform load sharing across multi-groove sheaves to prevent individual belt overload.
- Superior Traction: The Super Gripbelt design maximizes friction against the B belt section grooves for efficient power transfer without excessive slippage.
- Enhanced Durability: Neoprene-wrapped cover protects the internal tensile cords from oil contamination and high-temperature degradation.
- Drive Reliability: Wrapped edges are more tolerant of slight misalignment than raw-edge alternatives, reducing the risk of sudden mechanical failure.
Common Questions
Can I use a 5L420 belt instead of this B39?
While both share a similar top width, a 5L series belt has significantly lower horsepower capacity. In commercial HVACR applications, always use the Browning B39 to ensure the drive can handle the motor load.
Is the B39 belt static conducting?
Yes, these wrapped belts meet RMA standards for static conductivity and are oil and heat resistant, making them suitable for sensitive industrial environments.
Do I need to replace all belts in a set if only one B39 fails?
Yes. In a multi-belt system, installing one new belt with worn ones causes an uneven load distribution. Replacing the entire set ensures optimal performance and prevents premature wear on the new B39 belt.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
