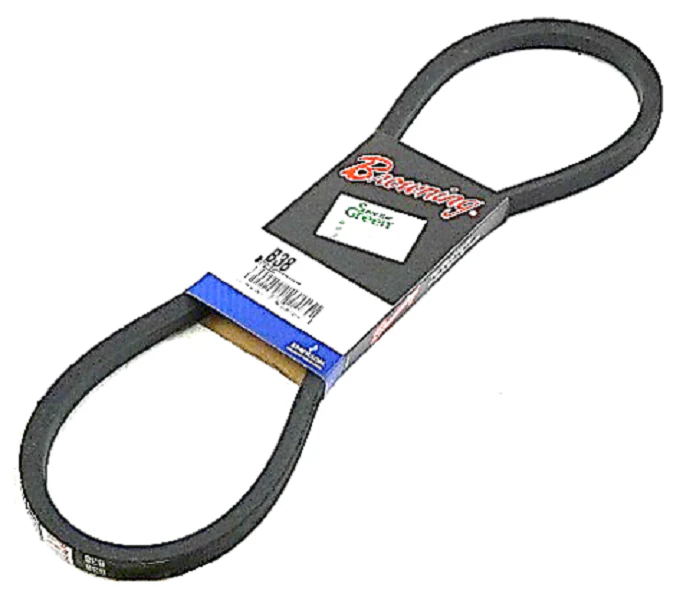

Browning B38 Belt
The Browning B38 is a high-performance B-section Super Gripbelt engineered for demanding commercial HVAC and industrial drive applications. Featuring a 41" outside diameter (OD) and a 39.8" pitch length, this classical wrapped V-belt is built with a neoprene synthetic rubber compound to resist oil and heat degradation. The B38 V-belt utilizes a single-fabric wrapped construction that provides smoother, quieter operation compared to raw-edge alternatives, while enhancing tolerance to minor pulley misalignment and slippage during heavy startup loads. Internally, high-tensile synthetic fiber cords provide the necessary structural integrity for high-torque transfer in HVAC blower motors and exhaust fans without excessive elongation. This industrial power transmission belt meets RMA standards for matched set tolerances, ensuring that multiple belts on a single drive share the load equally to prevent premature bearing failure and system vibration. For veteran technicians, the Browning B38 represents a reliable OEM-spec solution for maintaining air handler efficiency and reducing unscheduled downtime in heavy-duty environments.
- Matched Set Precision: Follows the "Code 1" match system, ensuring uniform length and tension across multi-belt drives.
- Enhanced Flexibility: The single-fabric wrap allows for better flex-life around smaller sheaves without compromising the 21/32" top width profile.
- Chemical Resistance: Neoprene-impregnated cover protects the core against grease, oil, and ozone exposure common in mechanical rooms.
- Reduced Noise: Wrapped sidewalls minimize "chirp" and vibration during high-RPM operations.
Common Questions
What is the difference between a B38 and a BX38?
The standard Browning B38 is a wrapped belt designed for smooth operation and slippage tolerance, whereas the BX38 is a cogged (notched) version. While they share the same dimensions, cogged belts run cooler on smaller pulleys, but the wrapped B38 is often preferred for its durability in dusty or oily HVAC environments.
How do I know if my B38 belt needs replacement?
Look for sidewall glazing, cracking on the underside, or "missing chunks" of the wrap. If you hear constant squealing even after proper tensioning with a gauge, the belt has likely reached its service limit or the pulley grooves are worn.
Can I replace just one belt in a dual-groove setup?
It is standard practice to replace all belts on a drive simultaneously. Mixing a new B38 belt with a stretched, used belt causes uneven load distribution, which can snap the new belt or damage the motor shaft.
