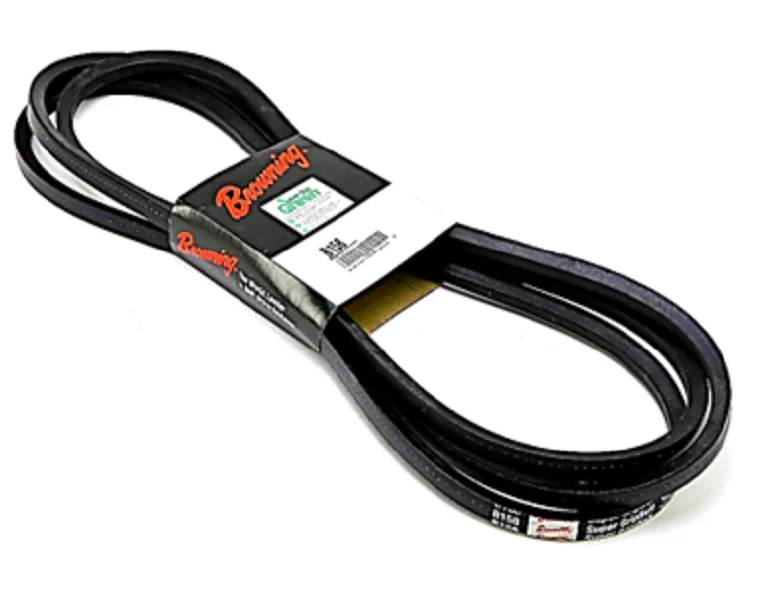

Browning B158 Belt
The Browning B158 Belt is a heavy-duty, classical B-section V-belt engineered for demanding industrial power transmission and HVAC blower drives. This Super Gripbelt features a 161-inch outside diameter with a standard 21/32-inch top width and a 13/32-inch thickness. Constructed with neoprene synthetic rubber and reinforced by high-tensile synthetic fiber cords, this belt provides superior resistance to elongation and heat. Its wrapped construction ensures smooth, quiet operation while allowing for greater flexibility and better tolerance for slight pulley misalignment compared to raw-edge alternatives. By utilizing the Browning Code 1 match system, these belts meet tighter-than-RMA standards, making it simple to source a precision-matched set for multi-belt drive systems in high-horsepower applications.
Key Benefits:- Optimized Power Transfer: 40-degree angle design maximizes grip within the sheave for efficient torque transmission.
- Stable Tracking: Wrapped single-fabric design reduces lateral whipping and prevents the belt from jumping the pulley.
- Environmental Resistance: Neoprene compound resists degradation from oil, dirt, and high ambient temperatures commonly found in mechanical rooms.
- Code 1 Matching: Simplifies inventory by ensuring any B158 belt with the Code 1 designation can be used in a matched set without manual measurement.
What are the exact dimensions of a B158 belt?
A standard B158 V-belt has a 158-inch nominal inside length and a 161-inch outside circumference. The top width is 21/32" (0.66 inches) and the height is 13/32" (0.41 inches).
Can this belt be used in clutching applications?
Yes, the wrapped construction provides the necessary slip characteristics required for clutching drives, unlike notched or raw-edge belts which may grab too aggressively.
Is the Browning B158 compatible with other brands?
This is a standard B-section classic belt and can replace comparable models such as the Gates Hi-Power II B158, Dayco AP55, or Goodyear Hy-T Plus B158, provided they share the 161" OC specification.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
