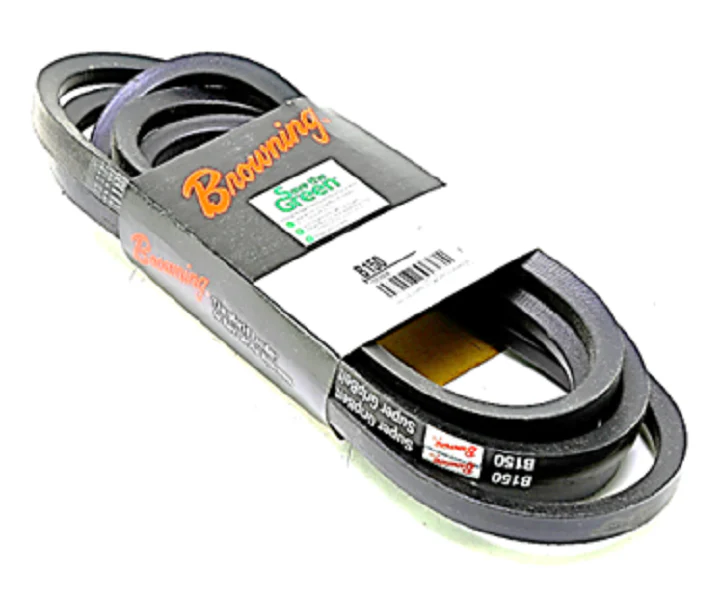

Browning B150 Belt
The Browning B150 Super Gripbelt is a professional-grade classical B-section V-belt designed for high-torque power transmission in commercial HVACR and industrial mechanical drives. Engineered with a 153-inch outside diameter and a 21/32-inch top width, this wrapped V-belt features a specialized single-fabric design that enhances flexibility while maintaining a high tolerance for pulley misalignment and clutching applications. Built for the rigors of mechanical rooms, the neoprene-wrapped construction provides essential resistance to heat and oil, meeting ARPM/RMA IP-3-2 standards for environmental durability and IP-3-3 for static conductivity.
For contractors managing multi-belt drives, the B150 utilizes the Browning Code 1 match system. This ensures that every belt meets tolerances tighter than industry RMA standards, allowing for "matching" without the need for specific match numbers. The internal high-tensile synthetic cords are specially treated to resist elongation and absorb shock loads, making this B150 drive belt a reliable solution for heavy-duty centrifugal fans, large-scale blowers, and industrial compressors. By improving sidewall contact and reducing "dishing," this belt maintains consistent speed ratios and maximizes drive efficiency in demanding HVAC power transmission environments.
Key Benefits:
- Code 1 Matching: Simplifies multi-groove drive replacement by ensuring uniform length within tolerances tighter than RMA standards.
- Enhanced Flexibility: Single-fabric wrapped construction allows for smooth operation over smaller sheaves without excessive heat buildup.
- Environmental Resistance: Neoprene compound protects the core against oil, grease, and ambient temperatures up to 140°F.
- Stable Power Transfer: High-tensile polyester cords minimize stretch, reducing the need for frequent take-up adjustments.
- Reduced Maintenance: Arched top and concave sidewalls provide uniform tensile loading and even pulley contact for extended service life.
Common Questions:
What are the exact dimensions of the B150 belt?
The B150 is a B-section belt with a nominal top width of 21/32", a thickness of 13/32", and an outside circumference of 153 inches.
Can this belt be used in matched sets for large blowers?
Yes, because it is part of the Browning Code 1 system, any B150 belt will match another B150, ensuring equal load distribution across all pulley grooves.
Is the Browning B150 suitable for clutching drives?
The wrapped fabric cover is specifically designed to allow for periodic slipping and clutching without the rapid wear associated with raw-edge or cogged belts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
