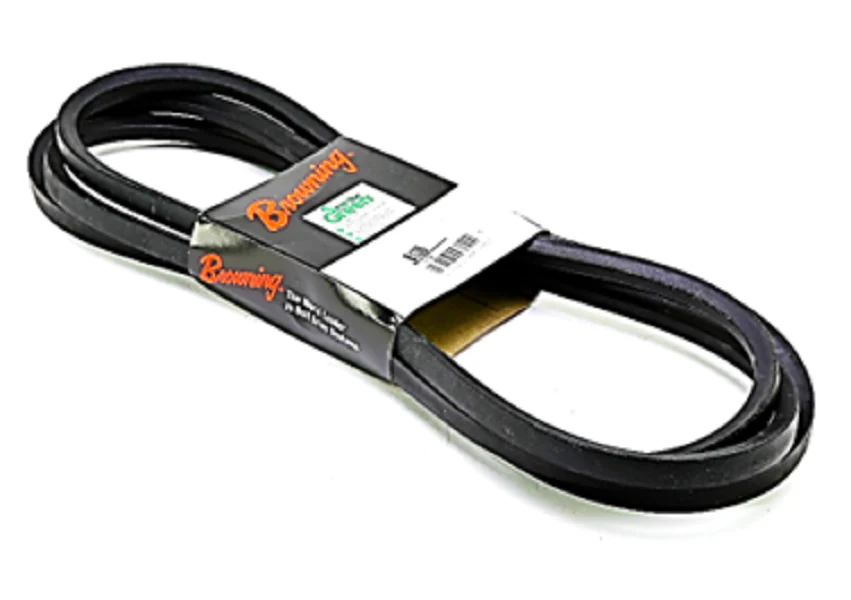

Browning B136 Belt
The Browning B136 Belt is a heavy-duty, classical B-section V-belt engineered for high-demand power transmission in industrial HVACR systems. Specifically designed as a 139-inch outside diameter type B super grip belt, this component features a wrapped construction that ensures quiet operation and increased resistance to oil, heat, and environmental contaminants. For contractors managing multi-belt drives, the B136 utilizes the "Code 1" match system, delivering tighter matching tolerances than standard RMA requirements. This allows for seamless power distribution across parallel sheaves without the risk of uneven wear or premature failure.
Constructed with high-tensile synthetic fiber cords and a neoprene body, the Browning B136 provides superior flex life and maintains stability under heavy starting loads. Its single-fabric layer design reduces vibration while providing the cross-rigidity necessary for high-torque applications in air handlers, centrifugal pumps, and compressors. By limiting elongation and maximizing efficiency, this wrapped V-belt serves as a reliable replacement for maintaining critical temperature control systems where downtime is not an option.
Key Benefits:- Enhanced Durability: Wrapped cover construction protects the internal tensile cords and provides a higher tolerance for misalignment than raw-edge alternatives.
- Code 1 Matching: Engineered for precision, allowing multiple belts to be used in sets with unified length tolerances for balanced load sharing.
- Technical Specifications: 21/32" top width and 137.8" pitch length ensure precise seating in standard B-series sheaves.
- Operational Efficiency: Static conducting and heat-resistant properties make it suitable for high-ambient rooftop units and enclosed motor compartments.
- Can I use an FHP (5L) belt as a substitute for the B136? No. While top widths are similar, a B-section belt like the B136 is designed for significantly higher horsepower capacity and industrial duty cycles compared to FHP belts.
- How do I confirm the size of this belt? The B136 has a nominal 136-inch inside length and a 139-inch outside circumference; always measure the outside of your existing belt if the part number is worn off.
- What causes this belt to squeal during startup? Typically, a squeal indicates insufficient tension or worn sheaves. Check your deflection force using a tension checker to ensure the belt is properly seated.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
