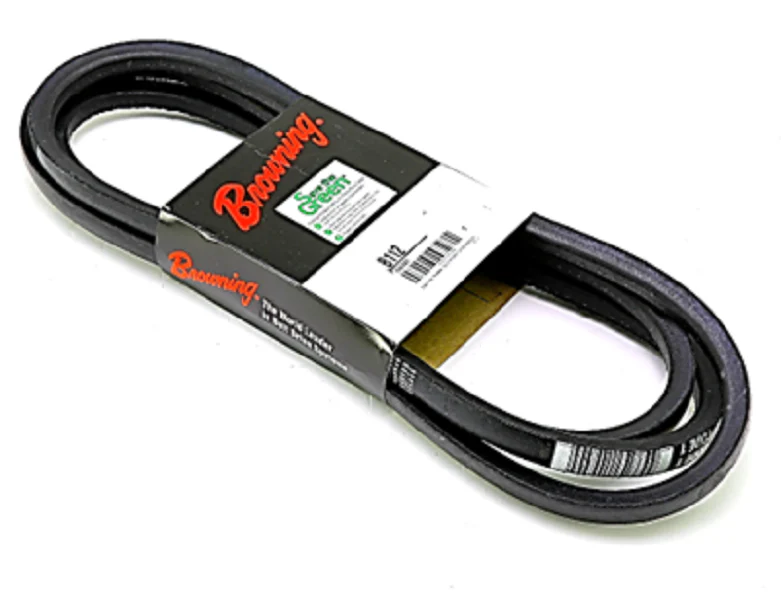

Browning B112 Belt
The Browning B112 Belt is a heavy-duty classical V-belt engineered for consistent power transmission in mission-critical HVAC and industrial mechanical drive applications. Built with a wrapped construction, this Type B Super Gripbelt features a single-fabric cover that provides smoother, quieter operation while remaining highly tolerant to minor pulley misalignment and slippage that often plagues raw-edge alternatives. With a 115 inch outside diameter and a 113.8 inch pitch length, the B112 is designed to maintain stable belt tracking under load, ensuring efficient torque transfer to fans, blowers, and compressors.
A standout feature of the Browning B112 is the proprietary Code 1 Match belt system. This manufacturing precision means every belt fits within the tightest industry tolerances, allowing technicians to pull any B112 off the shelf and use it in a matched set without worrying about uneven load distribution. The internal high-tensile cords are specially treated to resist elongation and fatigue, extending the service life of the power transmission v-belt even in high-ambient-temperature environments up to 140°F. Whether you are performing a routine HVAC belt replacement or commissioning a new air handler, this industrial drive belt provides the static conductivity and oil resistance required for professional standards.
Key Benefits- Code 1 Match System: Eliminates the need for specific matching numbers, ensuring uniform load sharing across multi-groove pulleys.
- Enhanced Flexibility: The wrapped, single-fabric design increases flex life and reduces heat buildup during heavy-duty operation.
- High-Tensile Reinforcement: Specially treated synthetic cords minimize stretch, reducing the frequency of re-tensioning calls.
- Quiet Operation: Designed for air handling units where low noise and minimal vibration are critical performance factors.
- Durable Construction: Neoprene-wrapped body provides reliable resistance to heat, oil, and atmospheric contaminants.
Can I use a 5L section belt instead of this B section belt?
No. While both feature a similar top width of approximately 5/8", a B section belt like the B112 is designed for industrial horsepower capacities and has a significantly longer design life than an FHP 5L belt.
How do I handle belt squeal on start-up?
Squealing typically indicates insufficient tension. Turn off the drive and re-tension the belt to the maximum installation value for a new belt. Re-check the tension after a 15-minute run-in period.
Is this belt static conducting for safety in air handlers?
Yes, all Browning Classical V-belts are designed to be static conducting to meet professional safety requirements for HVACR equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
