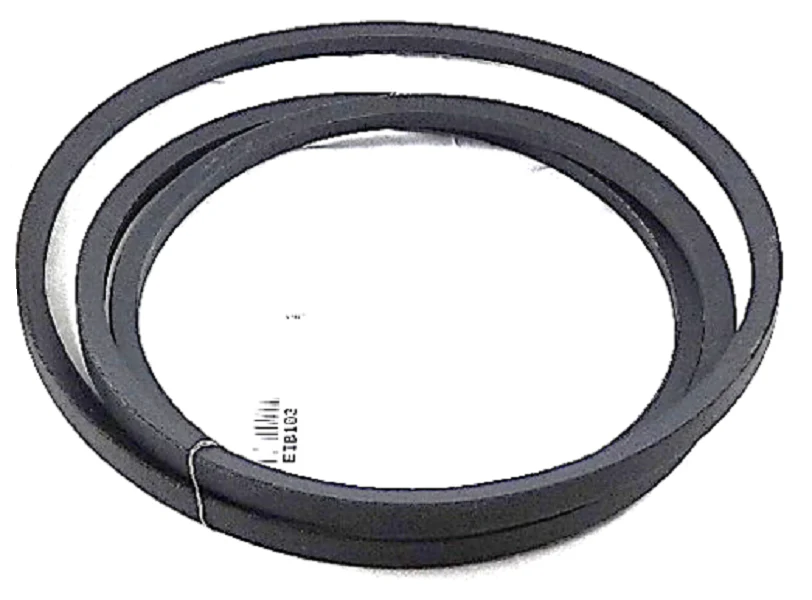

Browning B103 Belt
The Browning B103 Super Grip Belt is a heavy-duty classical B-section V-belt designed for high-torque power transmission in industrial HVACR systems. Built with a 106-inch outside diameter and a 104.8-inch pitch length, this wrapped V-belt features a specialized single-fabric design that enhances flexibility while maintaining superior traction. As a neoprene V-belt, it provides essential resistance to oil, heat, and ozone, ensuring reliable performance in demanding mechanical drives including centrifugal fans, heavy-duty compressors, and air handling units.
Every Browning B103 is part of the "Code 1" match system, meeting or exceeding RMA standards for length consistency. This allows technicians to install multiple belts on a single drive without the risk of uneven load distribution or premature wear. The high-tensile synthetic cords are specially treated to resist elongation and fatigue, making this belt an ideal replacement for generic 5L or standard B-section belts where industrial power transmission efficiency is critical. The wrapped construction also provides a smoother, quieter operation compared to raw-edge alternatives, specifically in applications prone to slight misalignment.
Key Benefits
- Precision Matching: The Code 1 system ensures uniform tension across multi-belt drives, preventing lateral whipping.
- Enhanced Flexibility: Single-fabric wrap allows for efficient operation on sub-minimal pitch diameter pulleys.
- Chemical Resistance: Neoprene-impregnated fabric maintains structural integrity when exposed to oils and greases.
- Static Conductivity: Engineered to safely dissipate static electricity in accordance with industrial safety protocols.
- High Efficiency: Delivers approximately 95% energy transfer efficiency for optimized motor performance.
Common Questions
Can I use a B103 in place of a 5L1030 belt?
While the widths are similar, a B-section belt is built for significantly higher horsepower and has a longer service life than light-duty FHP (5L) belts. It is recommended to use the B103 for industrial applications.
How do I know if my B103 requires re-tensioning?
Squealing at startup or glazed, shiny sidewalls typically indicate slippage. Technicians should verify tension 15 to 24 hours after a new installation once the belt has seated.
Is the B103 suitable for outdoor rooftop units?
Yes, the neoprene construction and wrapped jacket are designed to withstand UV exposure and ambient temperature fluctuations up to 140°F.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
