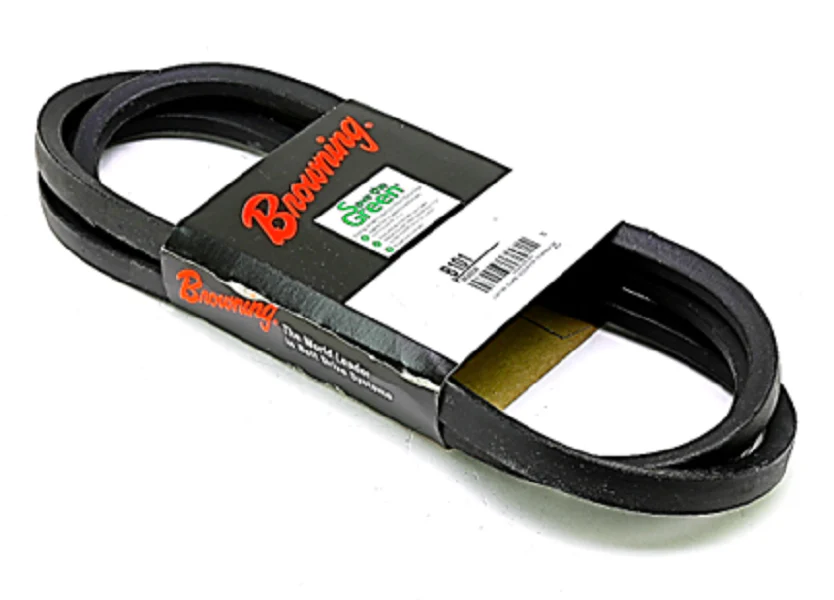

Browning B101 Belt
The Browning B101 Belt is a heavy-duty classical B-section V-belt engineered for precise power transmission in demanding HVACR and industrial drive systems. As a Super Gripbelt, this component features a 104-inch outside diameter (101-inch nominal length) with a standard 21/32-inch top width and 13/32-inch thickness. Designed to eliminate "dishing" and distortion under load, its neoprene wrapped construction ensures smooth, quiet operation while maintaining superior resistance to oil and ambient heat. The high-tensile polyester cord reinforcement provides exceptional length stability and fatigue resistance, making it the professional choice for high-torque applications in centrifugal fans, commercial pumps, and air handling units. This industrial V-belt is static conducting and meets RMA standards, ensuring it integrates seamlessly into Code 1 match systems for multi-belt drives without the risk of uneven loading or premature failure.
Key Benefits- Optimized Power Transfer: The 40-degree wedging angle enhances grip within B-section sheaves, increasing efficiency as torque loads rise.
- Durable Wrapped Design: A single-fabric wrap provides greater flexibility and higher tolerance for slight pulley misalignment compared to raw-edge alternatives.
- Heat and Oil Resistance: Engineered to withstand the harsh environments of rooftop units and mechanical rooms with a standard operating range of -35°F to +140°F.
- Consistent Matching: Part of the Browning Code 1 system, allowing technicians to pull any B101 belt from stock for a perfectly matched set.
Can I use a 5L belt instead of a B101 belt?
No. While both share a similar 5/8-inch top width, the Browning B101 is a classical industrial belt with significantly higher horsepower capacity and a longer design life than a light-duty 5L fractional horsepower belt.
Should I replace only the damaged belt in a multi-belt drive?
It is standard practice to replace the entire set. Mixing new and worn belts, or different brands, causes uneven tension and speed variances, which leads to rapid failure of the new belt and increased bearing wear.
How do I stop this belt from squealing on startup?
Squealing typically indicates insufficient tension or glazed sidewalls from slippage. Inspect sheave groves for wear and re-tension to manufacturer specs; never use belt dressing as it can degrade the neoprene compound.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
