Browning B 1 Bushing

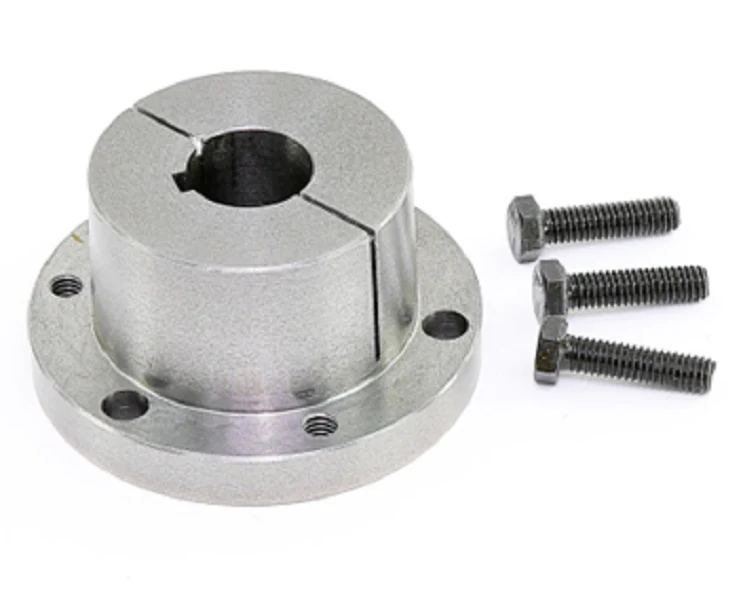

The Browning B 1 Split Taper Bushing is a precision-engineered shaft mounting solution designed for high-torque HVACR and industrial power transmission. Featuring a 1" finished bore and a standard 1/4" x 1/8" keyseat, this B Series bushing utilizes a double-split barrel design to ensure maximum concentricity and a reliable clamp fit that minimizes vibration in fan drives and pump systems. The 3/4" per foot taper provides a self-locking mechanical bond between the shaft and the driven component, such as a sheave or sprocket, effectively preventing slippage under heavy loads.
Constructed from durable sintered steel, this B1 bushing includes a solid flange to maintain bore integrity and improve structural rigidity. The key-to-key drive system transmits torque through the keys rather than the mounting hardware, protecting the 5/16" x 1-1/4" cap screws from shear stress. This interchangeable split taper design allows for rapid installation and removal, making it a staple for contractors maintaining commercial air handlers and belt-driven equipment.
Key Benefits:- Concentric Alignment: The double-split barrel provides 360-degree gripping power to reduce shaft runout and extend bearing life.
- High Torque Capacity: Integrated keyway system ensures positive power transmission for demanding HVACR applications.
- Versatile Compatibility: Standard 1-inch bore size fits a wide range of motor shafts and industrial drive components.
- Easy Serviceability: Threaded removal holes in the flange allow for quick mechanical separation without damaging the shaft.
- What is the torque specification for the mounting bolts? The 5/16" cap screws should be tightened to approximately 192 in-lbs to ensure a secure tapered fit.
- Can this bushing be used with other brands? Yes, Browning split taper bushings are generally interchangeable with industry-standard competitive designs.
- What material is this bushing made of? This specific 1-inch bore model is typically manufactured from high-strength sintered steel for optimal durability.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
